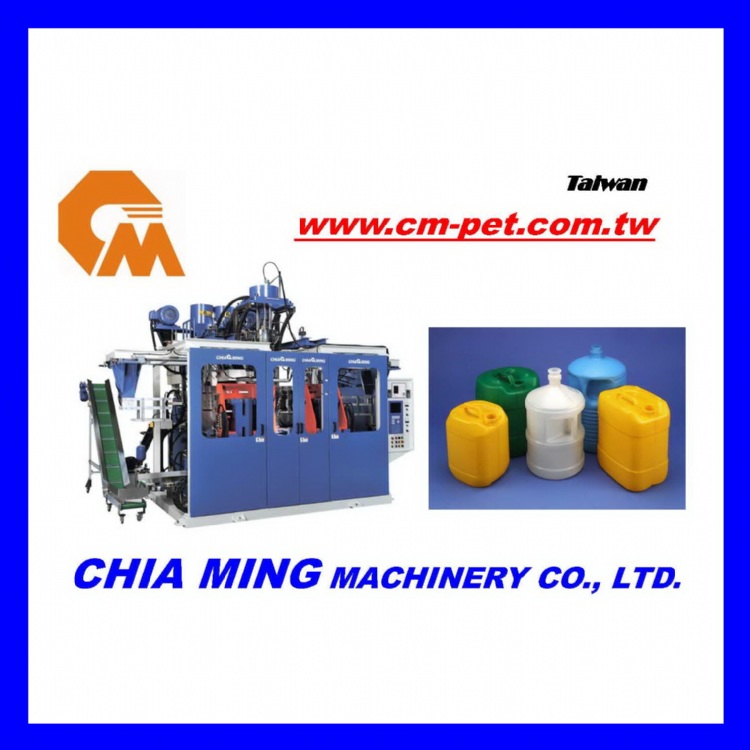

Extrusion Blow Molding Machine
產品型號：CM-75SVH2D
產品特色
-Screw design according to customer requirements. Screw and barrel are made of special steel and undergo nitrifying.
-The special structure of extruder and the vertical and longitudinal adjustment of the flat-table are adjusted automatically.
-Blow nozzle post is also auto adjust and equipped with a water cooling device.
-Specially designed hydraulics, circuiting, and accuracy of moulding movement & positioning.
-A parison parameter controller is also available for auto thickness adjust.
-Auto bottom mould release and auto circular jar cutter also available.
-Independent electrical cabinet, reduced vibration and computer control according to customer request.
產品規格
Model: CM-75SVH2D
-Material to be used: PE/PP
-Screw diameter: 75mm
-L/D ratio: 1/26
-Screw speed range(PE): 20-75rpm
-Inverter motor: 40HP
-Max. extrusive capacity: 78kgs/hour
-Heating zone (barrel): 3
-Heating capacity (barrel): 14kw
Diehead:
-Heating zone (diehead): 3
-Heating capacity (diehead): 8.6kw
-Double mold center distance: -
Mold plate:
-Max. opening stroke: 610mm
-Min. close stroke: 210mm
-Mold clamping force: 9ton
Hydraulic system:
-Hydraulic pump motor: 20HP
-Hydraulic oil pressure: 100kg/cm2
-Oil tank capacity: 100gallon
Product:
-Product weight (max.): 280g
-Product diameter (min./max.): 50~200mm
-Product capacity (min,/max.): 1000~5000ml
Total power consumption: 71kw
Weight of machine: 8ton
All specifications and designs are subject to change without notice.
