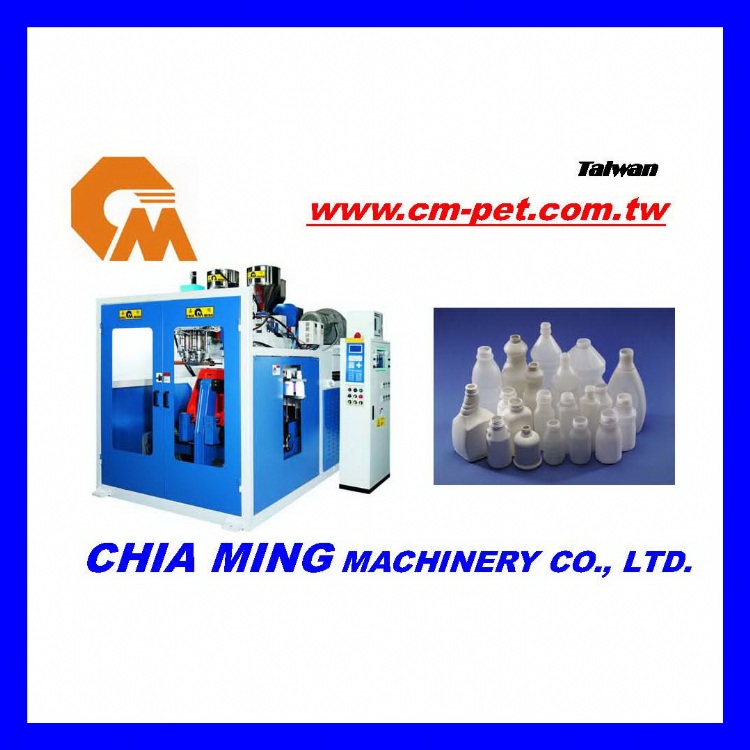

Blow Molding Machine
產品型號：CM-65DH
產品特色
-Screw design according to customer requirements. Screw and barrel are made of special steel and undergo nitrifying.
-The special structure of extruder and the vertical and longitudinal adjustment of the flat-table are adjusted automatically.
-Blow nozzle post is also auto adjust and equipped with a water cooling device.
-Specially designed hydraulics, circuiting, and accuracy of moulding movement & positioning.
-A parison parameter controller is also available for auto thickness adjust.
-Auto bottom mould release and auto circular jar cutter also available.
-Independent electrical cabinet, reduced vibration and computer control according to customer request.
產品規格
Model: CM-65DH
-Material to be used: PE/PP
-Screw diameter: 65mm
-L/D ratio: 1/24
-Screw speed range(PE): 15-65rpm
-Inverter motor: 20HP
-Max. extrusive capacity: 60kgs/hour
-Heating zone (barrel): 3
-Heating capacity (barrel): 10.8kw
Diehead:
-Heating zone (diehead): 3
-Heating capacity (diehead): 11.9kw
-Double mold center distance: 140mm
Mold plate:
-Max. opening stroke: 550mm
-Min. close stroke: 172mm
-Mold clamping force: 7.5ton
Hydraulic system:
-Hydraulic pump motor: 15HP
-Hydraulic oil pressure: 100kg/cm2
-Oil tank capacity: 85gallon
Product:
-Product weight (max.): 140g
-Product diameter (min./max.): 50~110mm
-Product capacity (min,/max.): 500~2000ml
Total power consumption: 52.6kw
Weight of machine: 6ton
All specifications and designs are subject to change without notice.
