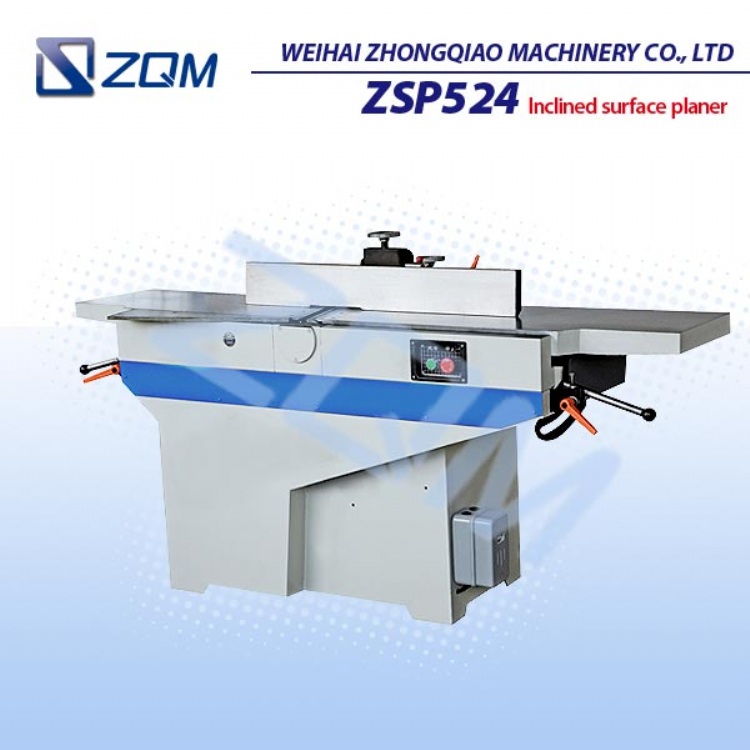

Woodworking inclined surface planer
產品型號：ZSP524
產品分類：木工產業機械 / 木工機械零組件 / 木工機械零組件
產品特色
Woodworking Inclined Surface Planer:
ZSP524 is specially designed for our Italian customer, is the newest model surface planer which is developed by ZQM. It follows the newest European standard, and is sold well in European market.
It has tight frame and novel appearance, compared with traditional surface planer, it equips with high-mounted witch and bridge guard. The high-mounted switch will be more convenient for operator to control machine. It will be more safe to do edge and face operation with bridge guard. Front and back workbench can be adjusted up and down according to different using requirement.
產品規格
MODEL ZSP524
Max. planning width(mm) 400
Max. planning depth(mm) 3
Max. cutting depth(mm) 10
Spindle speed(r/min) 5500
Length of working table(mm) 1850
Motor power(kw) 3
Overall dimension(cm) 1850*675*1010
Net weight (kw) 395
