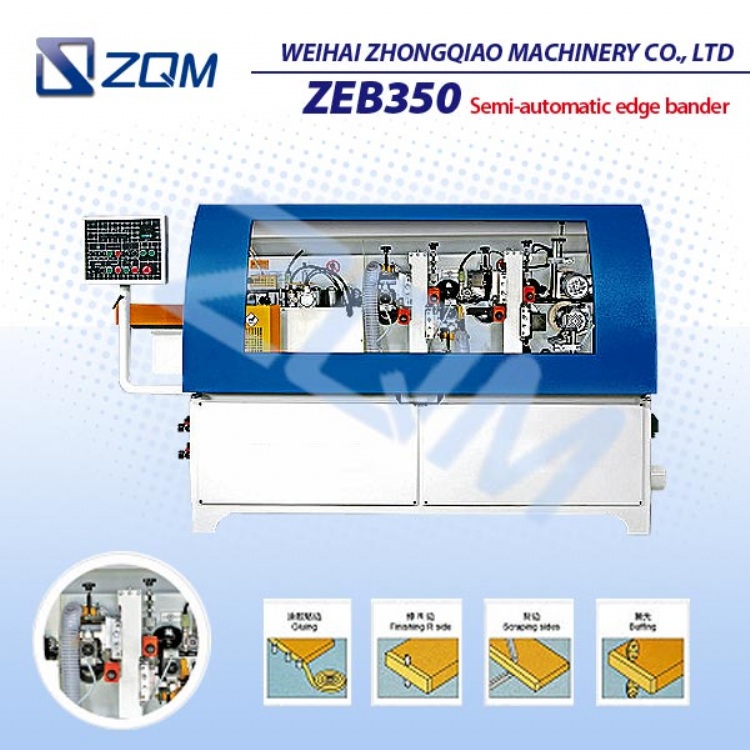

Woodworking Edge Bander
產品型號：ZEB 350
產品分類：木工產業機械 / 木工機械零組件 / 木工機械零組件
產品特色
The ZEB350 is a new Woodworking Edge Banding Machine in woodworking industry, which is used to seal the roll of plastic sealing belt or solid wood strip on the edge of flakeboard, cabinet board, MDF etc by thermosol to make man-made board more beautiful and durable.
產品規格
PARAMETER
MODEL ZEB350
Panel length(mm) Min. 120
Panel width(mm) Min. 80
Panel thickness(mm) 12-55
Edge width(mm) 15-58
Edge thickness(mm) 0.4-3
Feeding speed(m/min) 9.3
Total power consumption(kw) 4.84
Required air pressure(Mpa) 0.7
Net weight(kg) 860
Overall dimensions(L× W× H) 2600× 850× 1500
