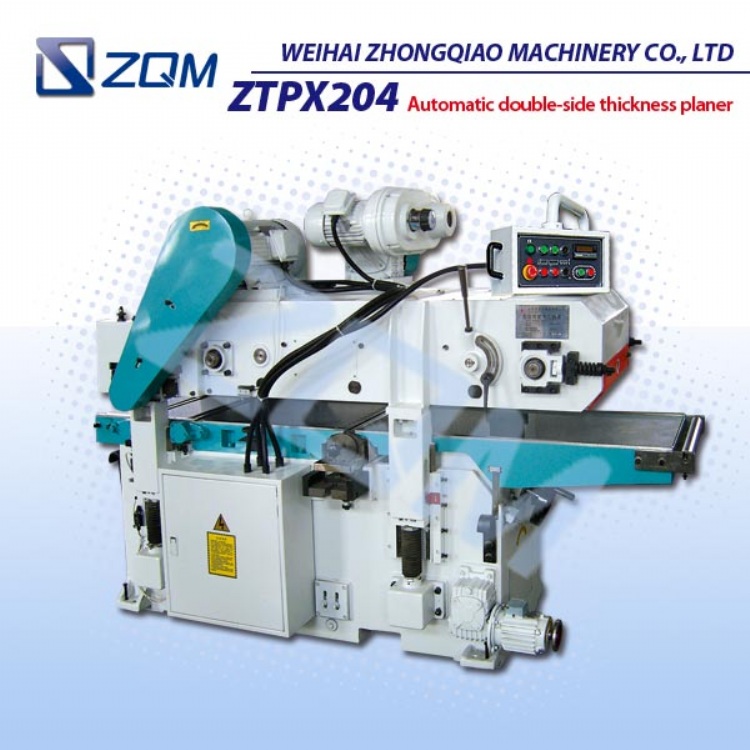

Woodworking automatic double-side thickness planer
產品型號：ZTP204
產品分類：木工產業機械 / 木工機械零組件 / 木工機械零組件
產品特色
ZTPX204 Automatic DOUBLE-SIDE THICKNESS PLANER is the heavy duty model developed by ZQM. It has perfect performance and high working efficiency.
One piece cast iron frame with aging treatment, providing sufficient stability. The workbench adopts special wear-resistance material so can ensure the using life. It adopts spring claw feeding system, providing adjustable pressure and perfece smooth feeding performance, so can ensure the final surface of the board.
產品規格
Model ZTPX204 ZTPX206
Max. working width (mm) 430 610
Max. working thickness (mm) 120 120
Min. working thickness (mm) 10 10
Min. planing length (mm) 260 320
Max. planing depth of upper arbor (mm) 5 5
Max. planing depth of bottom arbor (mm) 5 5
Feeding speed (m/min) 4.1-19.5 4.1-19.5
Cutting circle diameter of arbor (mm) 101 125
Arbor rotating speed (rpm) 5600 4500
Upper arbor motor power (kw) 7.5 11
Bottom arbor motor power (kw) 5.5 7.5
Feed motor power (kw) 1.5 2.2
Lifting motor power (KW) 0.37 0.37
Overall dimension(cm) 235 x 90 x 170 255.4 x 111.7 x 167.7
Weight (KGS) 2500 3200
