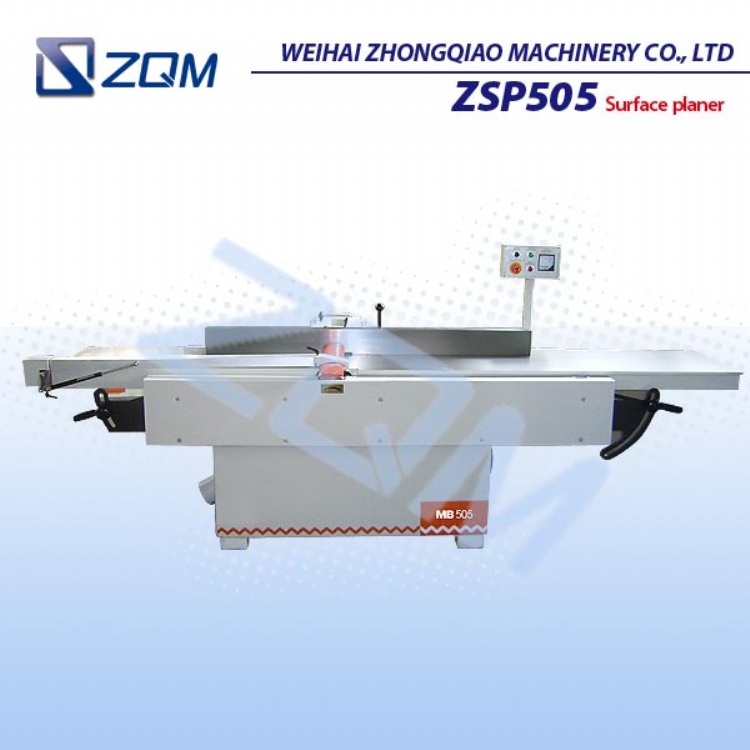

Woodworking surface planer
產品型號：ZSP505
產品分類：木工產業機械 / 木工機械零組件 / 木工機械零組件
產品特色
ZSP505 &504 is the newest model surface planer which is developed by ZQM. It follows the newest European standard, and is sold well in European market.
It has tight frame and novel appearance, compared with traditional surface planer, it equips with high-mounted witch and bridge guard. The high-mounted switch will be more convenient for operator to control machine. It will be more safe to do edge and face operation with bridge guard. Front and back workbench can be adjusted up and down according to different using requirement.
產品規格
Model ZSP523 ZSP524
Max. planning width(mm) 300 400
Total table length(mm) 2000 2500
Max. cutting depth(mm) 5 5
Planing arbor rotation speed (rpm) 5000 5000
Planing arbor diameter (without blades) (mm) 102 102
Knives amount 4 4
Motor power (KW) 2.2 3
Net weight (kw) 370 550
Overall dimension(cm) 200 x 74 x 105 250 x 85 x 105
