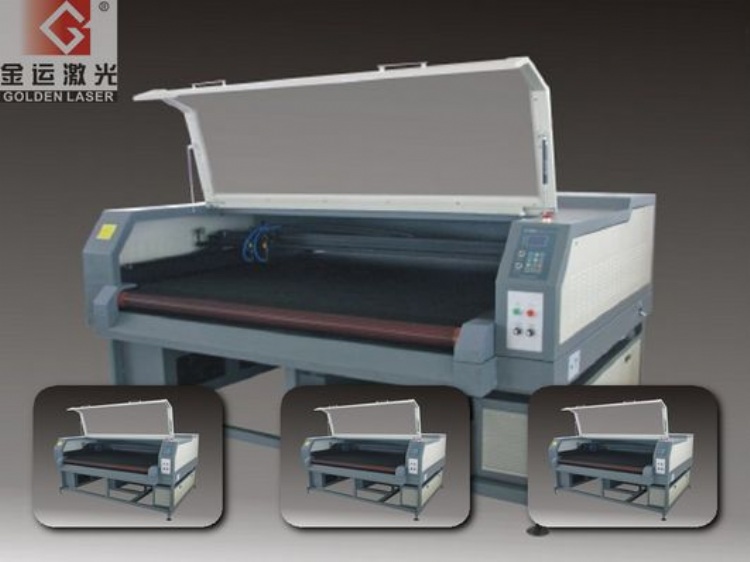

Double Head Movable Laser Cutting Machine for Car Seat Cover
產品型號：JGHY-160100LD II
產品分類：自動化設備/產業機械 / 自動化設備 / 雷射切雕刻機
產品特色
Feature Product
1.Adopts pedrail working table,feeding system
2.Automatically continuous processing with double-head movable cutting
3.Configured with intelligent typesetting software which makes your processing fast,material saving,pattern making and modifying easy
4.Suitable for cutting and punching on stuffed toys,automobile internal decoration and textile fabrics
Application Field
This machine specialized for car seat cover
產品規格
Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 80W×2
Cutting area 1600mm×1000mm
Working table Pedrail working table
No-load max speed 0-18000mm/min
Repeating location ±0.1mm
Moving system Offline stepping motor control system
Cooling system Water-cooling and protection system
Power supply AC220V±10% / 50HZ
Format support AI,PLT,DXF,DST etc
Standard collocation 550W up and down exhaust fan,mini air compressor
Select collocation single laser head,CO2 honeycomb and detached laser tube(65W/100W) ,high pressure blow magnetic valve and control board, assistant laser cutting head, conveyer working table, water chiller,auto feeding equipment,servo system
