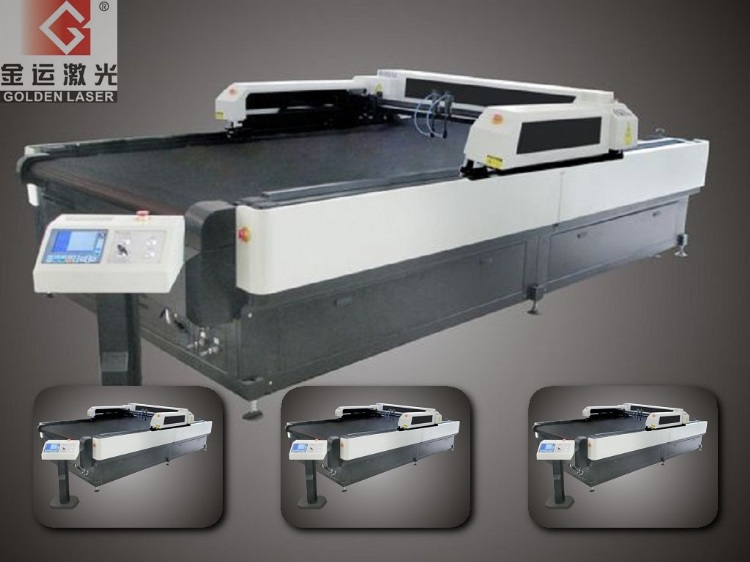

Airbag CO2 Laser Cutting bed
產品型號：CJG-210300LD
產品分類：自動化設備/產業機械 / 其他產業機械 / 工業儀器設備
產品特色
Product Main Features:
1.Professional airbag and filter fabric laser cutting machine with 2100mm*3000mm working area
2.Vacuum absorb conveyor working table with auto feeding system
3.Adopts 150W RF metal tube which cut efficiency
4.Super-long typesetting system
5.5 inch display CNC control system which support variety of software format,and offline or online control system both available
Application Field
Suitable for industrial materials,especially for airbag and filter material
產品規格
Main Technical Parameter
Laser type CO2 RF metal tube
Cutting Area 2100mm*3000mmm
Laser Power 150W
Working table Vacuum absorb conveyor working table
Working Speed 0-72000mm/min
Control System Nesting Offline Control,5 inch Display
Cooling Mode Water Chiller Cooling System
Power Supply AC220V±5%/ 50 HZ
Positioning Accuracy ±0.5mm
Standard Collocation Up exhaust fan,Two down exhaust fans,mini air compressor
Software Support File AI,BMP,PLT,DST,DXF etc
