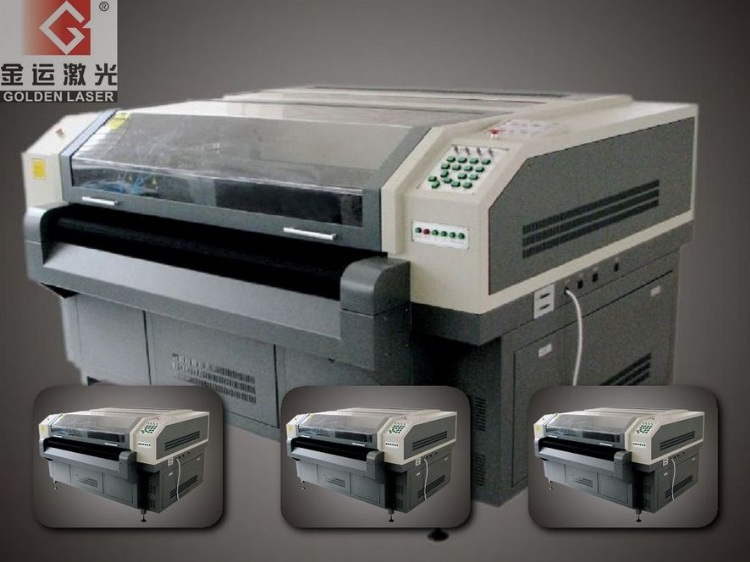

Plush Toy Four Head Movable Laser Cutting Machine
產品型號：JGHY-16580LD IV
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 蕾絲分條機
產品特色
Product Feature
1.Four laser head can calculate a most suitable way for processing according to different design and the width of the material
2.Forming a automatical cutting system after working combine with feeding and rewinder units
3.It is the most intelligent muti-head laser processing equipment at present, compared with traditional laser cutter
4.It can save more material, and improve the efficiency to more than 4 times.
Application Field
Suitable for all kinds of cloth，nap fabric，toys,toy fabric,etc
產品規格
Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 100W×4 or 80W×4
Cutting area 1600mm×780mm
Working table Pedrail working table
Cutting(no-load)speed 0-48000mm/min
Max cutting area of one head 400mm×800mm
Moving system Servo system, offline joint controlling
Power supply AC220V±5% / 50HZ
Format support AI、BMP、PLT、DXF、DST etc
Standard collocation Mini air compressor, laser chiller, 500W exhaust
Select collocation High pressure blow magnetic valve and control board, auto feeding and rolling equipment
