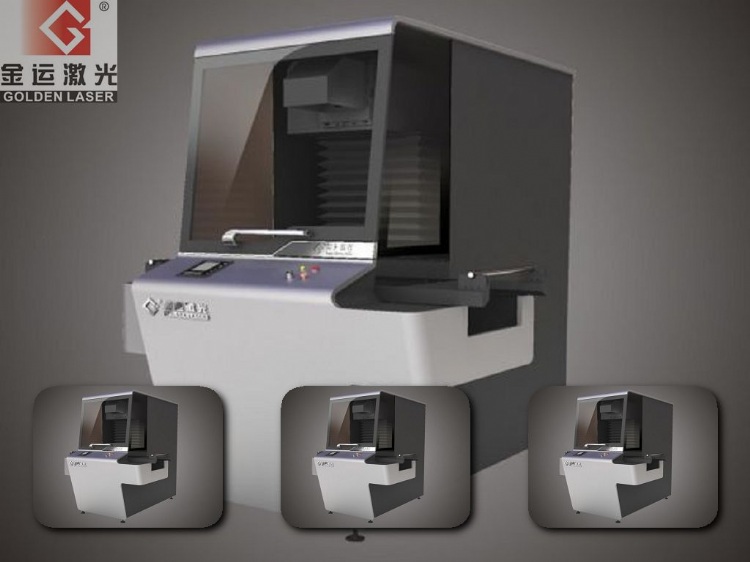

High Speed Leather Laser Engraving Punching Machine
產品型號：ZJ(3D)-9045 TB
產品分類：自動化設備/產業機械 / 其他產業機械 / 皮革機械
產品特色
Product Feature
1.Three dynamic galvo head system and Z axis auto-moving device
2.The best choice for engraving and punching on large-scale fur and feather material，and also suitble for small area leather label engraving and cutting
3.High quality and big added value of this model.
4. Auto mobile zinc honeycomb working table
Application Field
Suitable for all kinds of fur,leather fabric,leather shoes,leather belt,leather bag,leather luggage,etc
產品規格
Technical Parameter
Laser type CO2 RF Metal laser tube
Laser power 150W
Working area 900mm×450mm
No-load max speed 0∼420000mm/min
Moving system 3-Dimension Dynamic offline moving control system,5 inch LCD display
Cooling system Constant temperature water chiller
Working table Auto mobile zinc honeycomb working table
Repeating location ±0.1mm
Power supply AC220V±10% / 50HZ
Format support AI、BMP、PLT、DXF、DST etc
Standard collocation Two 1100W exhaust fans,foot switch
select collocation CO2 RF Metal laser tube(100W),red cross light location system
