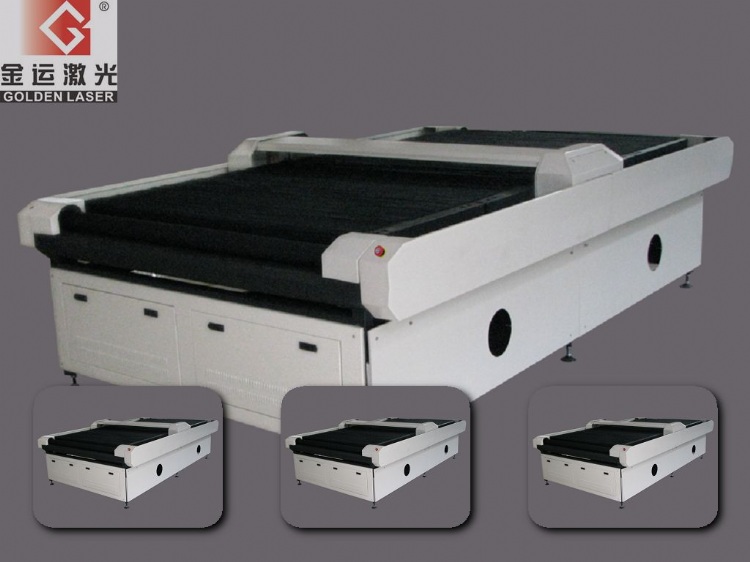

Garment Smaple Making Laser Cutting Machine
產品型號：CJG-150250
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 蕾絲分條機
產品特色
Product Feature
1.This model especially focus on garment sample making and small quantities cloth piece cutting
2.With negative pressure absorb conveyer working table, it makes rolling and feeding easy, which suitable for cotton, chemical fiber cutting and so on
3.Equipped with pattern-making camera machine, it can make samples efficiently
4.It can collocated with Marker pen or CCD camera system to proces
Application Field
Suitable for variety of fabrics,textile,garment,flexible materials,etc
產品規格
Main Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 65W,80W,100W for choice
Cutting area 1500mm×2500mm
Cutting(no-load)speed 0-30000mm/min
Working table Pedrail table
Moving system Servo moving system,5 inch display screen
Cooling system Contant temperature water chiller
Power supply AC220V±5% / 50HZ
Format support AI,BMP,PLT,DXF,DST etc
Standard collocation Top exhaust filtration system, assistant mini air compressor
Select collocation Projector(projection area 1450mm×1800mm),digital camera
