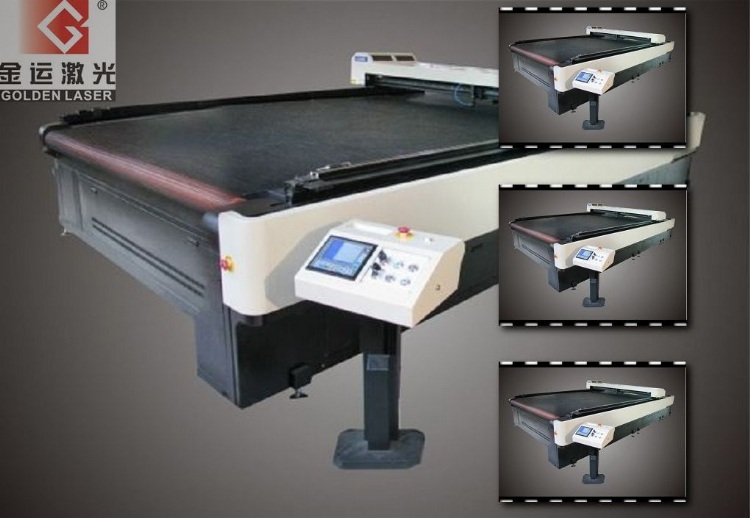

Car Logo Carpet Laser Cutting Bed
產品型號：CJG-250300 LD
產品特色
Product Feature
1.Wide format laser cutting machine with pedrail working table ,cooperated with feeding system
2.Fast and continuous cutting on various wide format thick fabrics ,such as automobile internal decoration and home textile fabrics ,etc
3.Opening design make your operation much easier ,faster and more intuitional
4.Large focal distance can meet the requirement for cutting on thick materials
Application Field
Suitable for variety of textile and industrial flexible material,especially for variety area carpet,non-woven carpet,blending carpet,artificial leather carpet,logo carpet,car carpet,grass carpt,handiwork carpet,car rug,door carpet,lift carpet,etc
產品規格
Main Technical Parameter
Laser type CO2 Hermetic and detached laser tube
Laser power 80W
Cutting area 2500mm×3000mm
Working table Pedrail working table
No-load max speed 0-30000mm/min
Repeating location ±0.1mm
Moving system Servo system, 5 inch LCD display
Cooling system Constant temperature water chiller
Power supply AC220V±5% / 50HZ
Format support AI,PLT,DXF,DST etc
Standard collocation one 550W top exhaust fan,two 3000W bottom exhaust fans ,mini air compressor
Select collocation CO2 RF metal laser tube(100W/150W), CO2 Hermetic and detached laser tube (100W),auto feeding equipment
