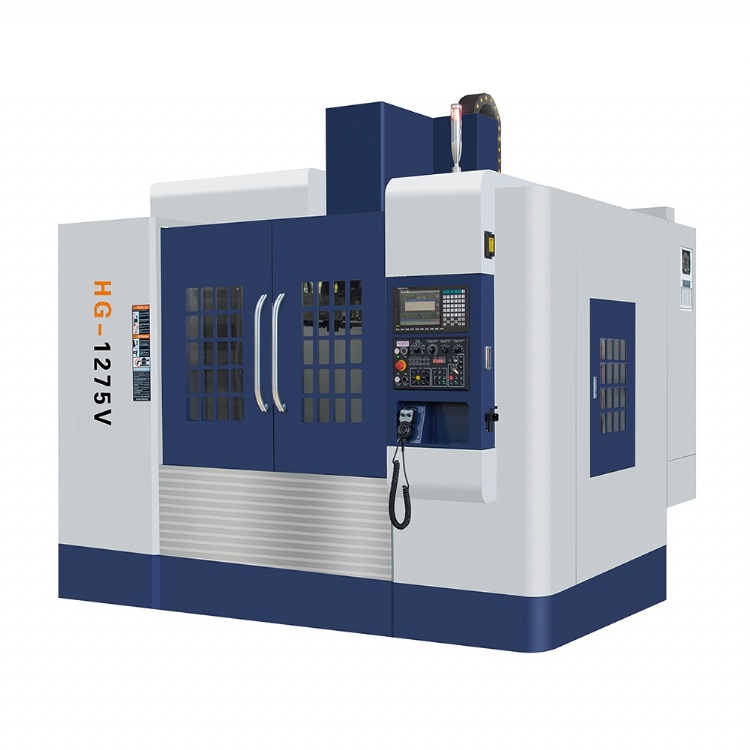

立式加工中心 HG1275v
產品型號：HG1275V
產品分類：工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
立式加工中心 – HG1275V 是一款配备 CNC（计算机数控）控制器的自动动力铣床。它用于在各种材料上铣削 2D/3D 形状或图案。它使用旋转圆柱形工具，能够沿多个轴移动，并且可以创建各种形状、槽和孔。此外，工件经常沿不同方向移动穿过铣刀。
HG Machinetools 数控立式加工中心 (VMC) 适用于大多数材料的雕刻、雕刻、铣削、切割和钻孔。因此广泛应用于注塑模具、五金模具、五金模具等成型行业。专为批量铣削模具、手表、眼镜、面板、品牌、徽章、外表面的光滑、三维图形和文字而设计。除此之外，该铣床可以轻松地在各种材料上形成 2D 或 3D 浮雕。
HG机床立式加工中心机身、工作台、立柱、铣头等均采用高强度铸铁铸造，并经过二次回火和时效处理，优化强化结构，使整体性能更符合加工特性和稳定性的要求。
A. HG Machinetools立式加工中心HG1275V的优势
1、机身导轨采用大跨度尺寸设计，立柱采用A型结构设计，使机床刚性好、热稳定性好。
2.台湾进口高性能主轴，可选配主轴油冷装置，控制主轴温升，提高切削精度。
3、三个进给轴均采用台湾进口直线滚柱导轨支撑，保证三轴定位精度。
4、滚珠丝杠两端经过预拉伸，增加了传动刚度，提前消除了快速运动时产生的热变形。
5、立式加工中心采用防溅钣金全防护设计，美观大方，保证操作人员的人身安全。
B. HG Machinetools 立式加工中心 HG1275V 的主要特点
A。全封闭盖
b.控制器集成
C。伺服电机
d.刀库
e.采用FANUC控制系统
F。自动润滑系统
G。 HIWIN/PMI滚柱式直线导轨
H。 HIWIN/PMI滚珠丝杆
我。 FAG熊
j。工具杂志 OKADA/Aimach
C、可选
1. 不同控制系统可选
2.第4轴/第5轴可选
3. 不同转速主轴可选
4. 不同类型刀库可选
5、刀库刀具容量可选
產品規格
Pls do not hesitate to contact us if you need any help with your next machining centers!
High Strength Castings
HG Machinetools Vertical Machining Centers' machine body, worktable, column, milling head, etc. are all cast from high-strength cast iron, and undergo secondary tempering and aging treatment to optimize the reinforcement structure, making the overall performance more in line with the requirements of processing characteristics and stability.
CNC Control System
Fanuc(Japan), Mitsubishi (Japan), Syntec (Taiwan,China) Optional
- Adopting high-performance and highly reliable high-speed microprocessing systems;
- Dynamic simulation of tool path, intelligent warning display, self diagnosis and other features;
- Multi segment pre reading control is particularly suitable for high-speed and large-scale program processing;
- RS-232 serial transmission, memory card transmission, USB transmission, combined with DNC standard processing configuration, facilitates the transmission of large capacity programs and online processing, with better processing efficiency and effectiveness
Spindle From Taiwan, China
Speed 6000/8000/10000/12000 RPM Optional
Spindle and motor belt are designed with a 1:1 connection, and the main motor is a low inertia motor with a speed of 10000rpm. It is a wise choice for high-precision, high rigidity, and heavy cutting situations; If there are higher requirements for surface smoothness, a 12000 rpm direct spindle can also be selected.
Cooling System
HG Machine is equipped with a cooling system, and the combination of a large flow pump and many nozzles can solve the machining problems of tool overheating and workpiece deformation due to machining heat.
Some Components of Our Machines
SPECIFICATION
| ITEM | UNIT | HG-850V | HG-855V | HG-1160V | HG-1275V | HG-1370V | HG-1580V |
|---|
| Travel of X Axis (Left-Right) | mm | 800 | 800 | 1100 | 1200 | 1300 | 1500 |
| Travel of Y Axis(Front-Back) | mm | 500 | 550 | 600 | 750 | 700 | 800 |
| Travelof Z Axis(Up-Down) | mm | 500 | 550 | 600 | 600 | 700 | 700 |
| Distance from workbench to spindle end face | mm | 150-650 | 150-700 | 120-720 | 120-720 | 80-780 | 150-850 |
| Distance from the front end of column to the center of Spindle | mm | 600 | 643 | 650 | 775 | 810 | 925 |
| Working Table Size(L*W) | mm | 1000×500 | 1000×550 | 1200×600 | 1300×700 | 1400×700 | 1600×800 |
| Max. Loading Weight | kg | 400 | 500 | 800 | 1000 | 1600 | 1600 |
| Working Table T-Slot | mm | 18T×90×5 | 18T×90×5 | 18T×100×5 | 18T×100×6 | 18T×110×5 | 18T×110×7 |
| X/Y/Z Axis Rapid Feeding Speed | m/min | 48×48×48 | 48×48×48 | 36×36×36 | 36×36×36 | 30×30×30 | 30×30×30 |
| Power of X/Y/Z Axis | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | |
| Roller Guideway of X/Y/Z | X:35(4Rollers) Y:35(4Rollers) Z:35(4Rollers) |
X:35(4Rollers) Y:45(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:45(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:55(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:45(8Rollers) Z:45(6Rollers) |
X:55(6Rollers) Y:45(4Rollers) Z:55(6Rollers) |
|
| Ball Screw of X/Y/Z | 4016 | 4016 | 4012 | 4012 | 4512 | 5010 | |
| Speed of Spindle | rpm | 8000/10000/12000 | 8000/10000/12000 | 8000/10000/12000 | 6000/8000/10000/12000 | 6000/8000/10000/12000 | 6000/8000/10000/12000 |
| Spindle Taper | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 | BT40/BT50 | |
| Transmission Type | mm | Belt／Direct Connect | Belt／Direct Connect | Belt／Direct Connect | Belt／Direct Connect | Belt／Direct Connect | Belt／Direct Connect |
| Spindle Motor | kW | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System |
| Position accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability position accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Tool Magazine (Tools Qty) | T | BT40-24 | BT40-24 | BT40-24 | BT40-24T/BT50-24T | BT40-24T/BT50-24T | BT40-24T/BT50-24T |
| Control System | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | |
| Machine Floor Space (LxWxH) | mm | 2700×2400×2500 | 2700×2400×2600 | 3100×2450×2800 | 3300×2500×2800 | 3600×2800×2800 | 4400×3200×3000 |
| Pressure Requirement | kg/cm² | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
| Power Supply | Kva | 20 | 20 | 20 | 25 | 30 | 35 |
| Machine Weight | kg | 5200 | 5500 | 7000 | 8500 | 10000 | 13000 |
|---|
