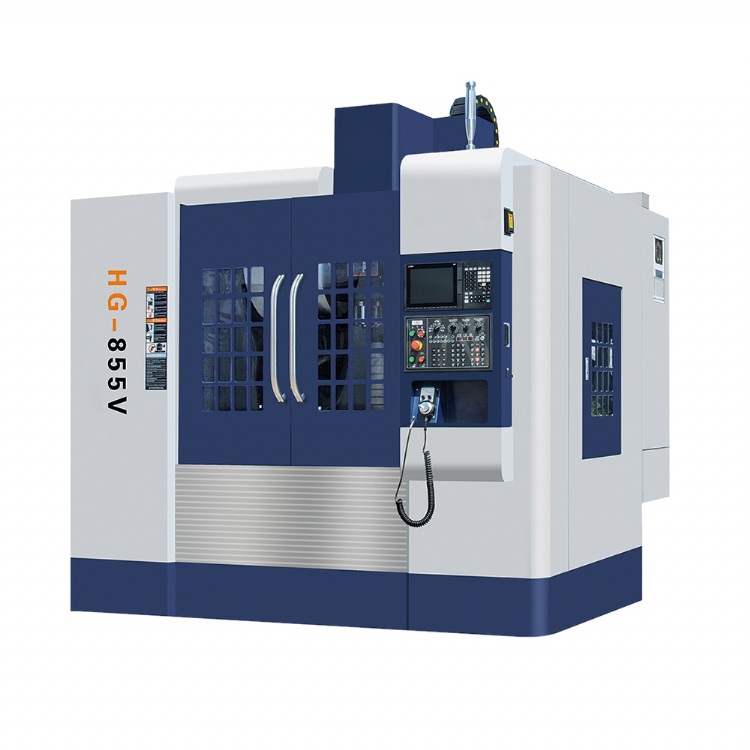

立式加工中心
產品型號:HG855V
產品分類:工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
立式加工中心 – HG855V 是一款配备 CNC(计算机数控)控制器的自动动力铣床。它用于在各种材料上铣削 2D/3D 形状或图案。它使用旋转圆柱形工具,能{沿多个轴移动,并且可以创建各种形状、槽和孔。此外,工件经常沿不同方向移动穿过铣刀。
HG Machinetools 数控立式加工中心 (VMC) 适用于大多数材料的雕刻、雕刻、铣削、切割和钻孔。因此な泛应用于注塑模具、五金模具、五金模具等成型行业。专为批量铣削模具、手表、眼镜、面板、品牌、徽章、外表面的光滑、三维图形和文字而设计。除此之外,该铣床可以轻松地在各种材料上形成 2D 或 3D 浮雕。
HG机床立式加工中心机身、工作台、立柱、铣头等均采用高L度铸铁铸造,并经过二次回火和时效处理,优化L化结构,使整体性能更符合加工特性和稳定性的要求。
A. HG Machinetools立式加工中心HG855V的优势
1、机身导轨采用大跨度尺寸设计,立柱采用A型结构设计,使机床刚性好、热稳定性好。
2.台湾进口高性能主轴,可选配主轴油冷装置,控制主轴温升,提高切削精度。
3、三个进给轴均采用台湾进口直线滚柱导轨支撑,保证三轴定位精度。
4、滚珠丝杠两端经过预拉伸,增加了传动刚度,提前消除了快速运动时产生的热变形。
5、立式加工中心采用防溅钣金全防护设计,美观大方,保证操作人员的人身安全。
B. HG Machinetools 立式加工中心 HG855V 的主要特点
A。全封闭盖
b.控制器集成
C。伺服电机
d.刀库
e.采用FANUC控制系统
F。自动润滑系统
G。 HIWIN/PMI滚柱式直线导轨
H。 HIWIN/PMI滚珠丝杆
我。 FAG熊
j。工具杂志 OKADA/Aimach
C、可选
1. 不同控制系统可选
2.第4轴/第5轴可选
3. 不同转速主轴可选
4. 不同类型刀库可选
5、刀库刀具容量可选
產品規格
Pls do not hesitate to contact us if you need any help with your next machining centers!
ITEM | UNIT | HG-850V | HG-855V | HG-1160V | HG-1275V | HG-1370V | HG-1580V |
---|
Travel of X Axis (Left-Right) | mm | 800 | 800 | 1100 | 1200 | 1300 | 1500 |
Travel of Y Axis(Front-Back) | mm | 500 | 550 | 600 | 750 | 700 | 800 |
Travelof Z Axis(Up-Down) | mm | 500 | 550 | 600 | 600 | 700 | 700 |
Distance from workbench to spindle end face | mm | 150-650 | 150-700 | 120-720 | 120-720 | 80-780 | 150-850 |
Distance from the front end of column to the center of Spindle | mm | 600 | 643 | 650 | 775 | 810 | 925 |
Working Table Size(L*W) | mm | 1000×500 | 1000×550 | 1200×600 | 1300×700 | 1400×700 | 1600×800 |
Max. Loading Weight | kg | 400 | 500 | 800 | 1000 | 1600 | 1600 |
Working Table T-Slot | mm | 18T×90×5 | 18T×90×5 | 18T×100×5 | 18T×100×6 | 18T×110×5 | 18T×110×7 |
X/Y/Z Axis Rapid Feeding Speed | m/min | 48×48×48 | 48×48×48 | 36×36×36 | 36×36×36 | 30×30×30 | 30×30×30 |
Power of X/Y/Z Axis | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | |
Roller Guideway of X/Y/Z | X:35(4Rollers) Y:35(4Rollers) Z:35(4Rollers) |
X:35(4Rollers) Y:45(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:45(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:55(4Rollers) Z:45(6Rollers) |
X:45(6Rollers) Y:45(8Rollers) Z:45(6Rollers) |
X:55(6Rollers) Y:45(4Rollers) Z:55(6Rollers) |
|
Ball Screw of X/Y/Z | 4016 | 4016 | 4012 | 4012 | 4512 | 5010 | |
Speed of Spindle | rpm | 8000/10000/12000 | 8000/10000/12000 | 8000/10000/12000 | 6000/8000/10000/12000 | 6000/8000/10000/12000 | 6000/8000/10000/12000 |
Spindle Taper | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 | BT40/BT50 | |
Transmission Type | mm | Belt/Direct Connect | Belt/Direct Connect | Belt/Direct Connect | Belt/Direct Connect | Belt/Direct Connect | Belt/Direct Connect |
Spindle Motor | kW | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System | According to the Control System |
Position accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Repeatability position accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
Tool Magazine (Tools Qty) | T | BT40-24 | BT40-24 | BT40-24 | BT40-24T/BT50-24T | BT40-24T/BT50-24T | BT40-24T/BT50-24T |
Control System | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | Syntec/Mitsubish/Fanuc | |
Machine Floor Space (LxWxH) | mm | 2700×2400×2500 | 2700×2400×2600 | 3100×2450×2800 | 3300×2500×2800 | 3600×2800×2800 | 4400×3200×3000 |
Pressure Requirement | kg/cm² | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
Power Supply | Kva | 20 | 20 | 20 | 25 | 30 | 35 |
Machine Weight | kg | 5200 | 5500 | 7000 | 8500 | 10000 | 13000 |
---|
