Centrifugal Barrel Finishing Machine
產品型號：XGP16, XGP30, XGP36, XGP40, XGP60, XGP120,XGP320
產品分類：自動化設備/產業機械 / 其他產業機械 / 表面處理設備
產品特色
Centrifugal Barrel Finishing Machine from China at competitive price and excellent service
Centrifugal Barrel Finishing Machine provide the most economical and fast finishing processing, speed control inverter makes the machine finishing and polishing at low speed and aggressive deburring and edge radiusing at high speed.
Feature:
Finishing cycles up to 30 times faster than vibratory or rotary finishing
Consistent repeatable process finishing
Planetary drive system
Belt/chain driven, movement smooth and stable, low noises, less maintenance.
Four barrels lined with hot poured, high wear resistance Polyurethane for longer working life.
Variable frequency speed drive for increased finishing options.
Turret jog motor make the turret to be positioned properly for easy loading/unloading.
Turret door interlock for safety operation, prevent the cover from being opened during operation.
產品規格
|
Model |
Capacity (L) |
Power (KW) |
Dimension / L x W x H (mm) |
Weight (Kg) |
|
|
XGP16* |
16 |
3 |
1260 x 900 x 1270 |
500 |
|
|
XGP30 ** |
30 |
2.2 |
930 x 1042 x 1155 |
485 |
|
|
XGP36 |
36 |
2.2 |
1130 x 930 x 1440 |
530 |
|
|
XGP40*** |
40 |
4 |
1300 x 1062 x 1400 |
600 |
|
|
XGP60 |
60 |
4 |
1300 x 1130 x 1620 |
850 |
|
|

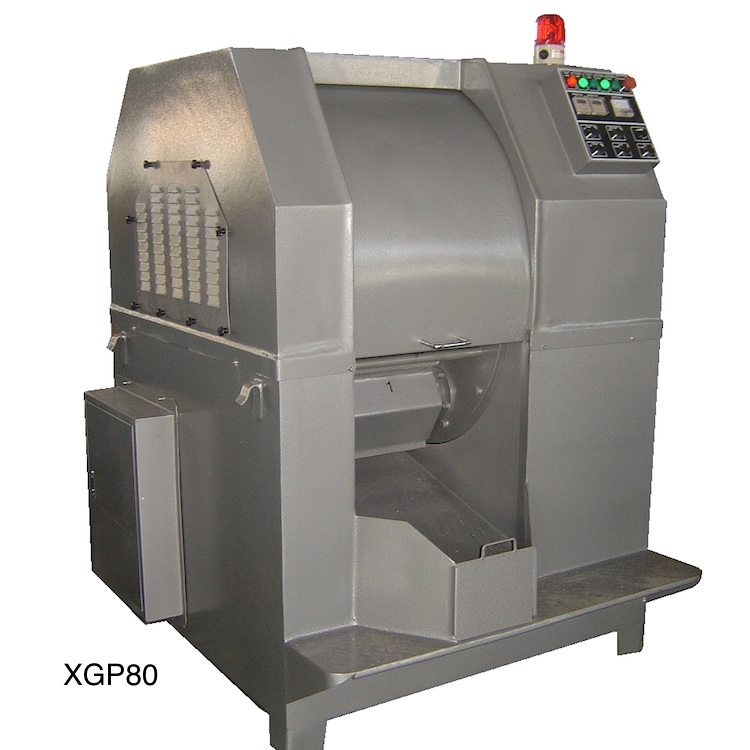

XGP80 |
80 |
5.5 |
1375 x 1750 x 1562 |
800 |
|
|
XGP120 |
120 |
5.5 |
1410 x 1450 x 1815 |
1300 |
|
|
XGP140 |
140 |
7.5 |
1528 x 1750 x 1965 |
1500 |
|
|
XGP160 |
160 |
7.5 |
1537 x 1770 x 2000 |
1650 |
|
|
XGP200 |
200 |
11 |
1900 x 1810 x 2210 |
1870 |
|
|
XGP320 |
320 |
15 |
2040 x 2200 x 2400 |
3100 |
|
|
Optional |
1. hexagon barrel 2. round barrel 3. skew axis 4. vibratory separator 5. compartment barrel to eliminate part on part impact |
||||
