GEA VT10 VT20 VT40 VT80 NT50M NT50X NT150S alloy C276 plate viton gasket for sulfuric acid
產品型號：VT10 VT20 VT40 VT80 NT50M NT50X NT150S
產品分類：零組件配件 / 油壓與氣壓元件 / 熱交換器，油壓系統用
產品特色
Product Type Heat Exchanger Plate and gasket
Material Stainless steel 316 and 304, NBR, EPDM
Packing Plywood box
Delivery time 7-10days
Origin China
產品規格
GEA VT10 VT20 VT40 VT80 NT50M NT50X NT150S alloy C276 plate viton gasket for sulfuric acid

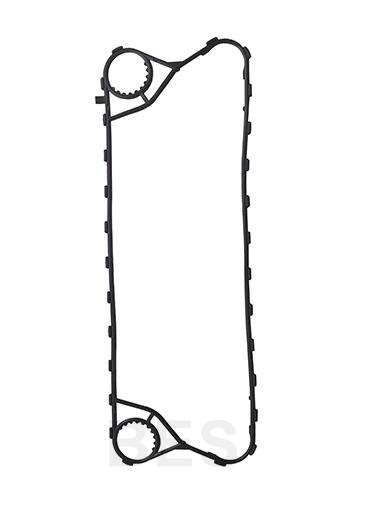

Gaskets and Plates description
BES provides high-quality heat exchanger plates and gaskets. At present, we have developed more than 200 sets of gasket and plate molds. For customers’ special versions, we can accept customized services. Our company has corresponding maintenance sites in South Africa, India, Europe, the United States, Thailand, Vietnam and other places, which can provide repair and replacement services.
The main brands for Gaskets and Plates
AHLA, GEA, APV, Sondex, Tranter, Hisaka, Vicarb, VIEX, Sigma, Thermowave, Funke, Fischer, SWEP, Murller, ITT, AGC, etc.
Gasket material usage
|
Gasket Material |
Operating Temperature |
Sultable Media |
|
NBR |
-20℃-+110℃ |
Water,sea water,mineral oil,Salt,Brine |
|
EPDM |
-50℃-+150℃ |
Hot water steam,Acid,Alkali |
|
HNBR |
-15℃-+160℃ |
High temperature,mineral oil,water |
|
VITON/FKM |
-35℃-+180℃ |
High temperature,high resistance,strong oxidans,oil,acid,alkali,etc |
Plate material usage
|
Plate Material |
Suitable Media |
|
Stainless Steel(304/316) |
Pure Water, River Water, Edible Oil, Mineral Oil |
|
Ti, Ti-Pd |
Seawater, Brine, Salt Substance |
|
20Cr,18Ni,6Mo(254MO) |
Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution |
|
Nickel |
High Temperature, High Density Caustic Soda |
|
Hastelloy C276 |
Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid |
BES supplies GEA plate heat exchanger gasket and plate replacements. GEA Model List as below.
| GEA(KELVION) PLATES AND GASKETS MODEL LIST | |||||||||
| GEA FA-157 | GEA CT-187 | GEA VT-4 | GEA FA-159 | GEA VT-10 | GEA VT-20 P | GEA VT-20 Clip | GEA VT-20 | GEA FA-161 | GEA FA-184 |
| GEA VT-40 | GEA VT-40 M | GEA VT-402 | GEA VT-40 Clip | GEA VT-405 P | GEA VT-40 P | GEA N-40 | GEA VT-130 | GEA FA-192 | GEA VT-80 P |
| GEA VT-80 M | GEA VT-80 | GEA VT-80 Clip | GEA VT-805 | GEA VT-130 M | GEA VT-1309 | GEA VT-1306 | NT-100M | NT-100T | NT-100X |
| GEA NT-150 L | GEA NT-150 S | GEA NT-250L | GEA NT-250S | GEA NT-350S | GEA NT-50M | GEA NT-50T | GEA LWC-100T | GEA LWC-100M | GEA LWC-100X |
| GEA LWC-150S | GEA LWC-150L | GEA LWC-250S | GEA LWC-250L | GEA LWC-350S | GEA LWC-350M | ||||
