BES provides high-quality heat exchanger plates and gaskets. At present, we have developed more than 200 sets of gasket and plate molds. For customers’ special versions, we can accept customized services. Our company has corresponding maintenance sites in South Africa, India, Europe, the United States, Thailand, Vietnam and other places, which can provide repair and replacement services.

The main brands for Gaskets and Plates

AHLA, GEA, APV, Sondex, Tranter, Hisaka, Vicarb, VIEX, Sigma, Thermowave, Funke, Fischer, SWEP, Murller, ITT, AGC, etc.

Gasket material usage

Gasket Material	Operating Temperature	Sultable Media
NBR	-20℃-+110℃	Water,sea water,mineral oil,Salt,Brine
EPDM	-50℃-+150℃	Hot water steam,Acid,Alkali
HNBR	-15℃-+160℃	High temperature,mineral oil,water
VITON/FKM	-35℃-+180℃	High temperature,high resistance,strong oxidans,oil,acid,alkali,etc

Plate material usage

Plate Material	Suitable Media
Stainless Steel(304/316)	Pure Water, River Water, Edible Oil, Mineral Oil
Ti, Ti-Pd	Seawater, Brine, Salt Substance
20Cr,18Ni,6Mo(254MO)	Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution
Nickel	High Temperature, High Density Caustic Soda
Hastelloy C276	Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid

BES supplies SONDEX plate heat exchanger gasket and plate replacements. SONDEX Model List as below.

Sondex PLATES AND GASKETS MODEL LIST
Sondex S4	Sondex S4A	Sondex S7A	Sondex S8A	Sondex S14A	Sondex S19A	Sondex S19	Sondex S20	Sondex S20A
Sondex S21A	Sondex S41A	Sondex S81A	Sondex S121A	Sondex S18	Sondex S21	Sondex S22	Sondex S37	Sondex S41
Sondex S42	Sondex S43	Sondex S47	Sondex S62	Sondex S65	Sondex S81	Sondex S100	Sondex S113	Sondex S121
Sondex S188	Sondex SH101	Sondex SH102	Sondex SH154	Sondex SH154L	Sondex SH203	Sondex SH204	Sondex SH204L	Sondex S43AD
Sondex S43B

Page Top

供應商等級

精選產品

聯絡資訊

放大圖片

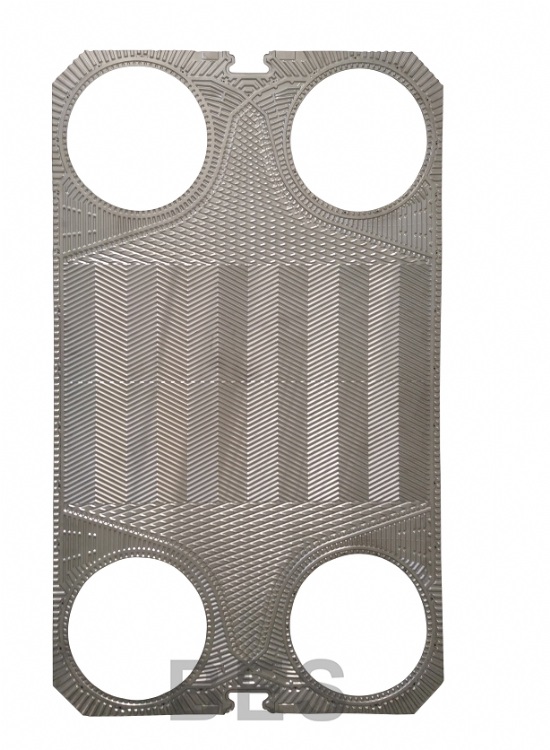

Sondex S14A S7A S8A S19A S23 S43 S37 S121 heat exchanger plate ss316l
