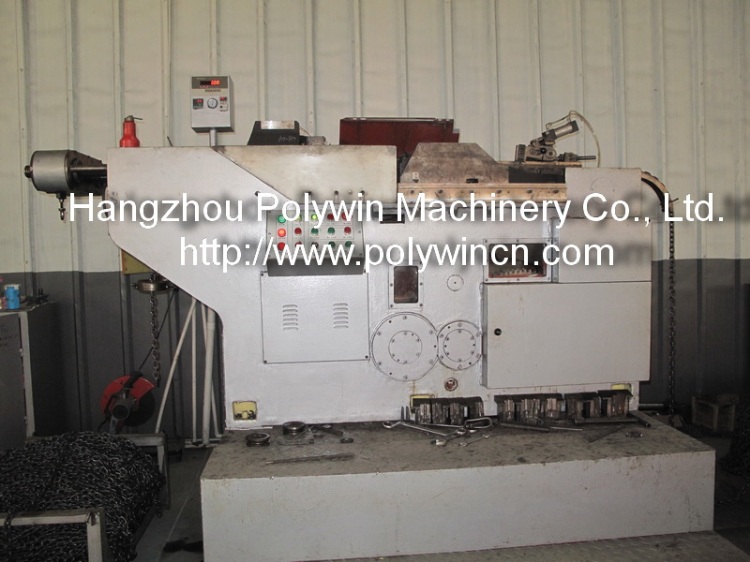

chain calibration machine
產品型號：CEC2-10-10
產品分類：自動化設備/產業機械 / 其他產業機械 / 其他檢測試驗設備
產品特色
Automatic chain calibration machine, chain calibrating machine, Designed for adjusting chain links right after being heat treated, round steel chains are automatically set with a given testing force or to a given length while being calibrated and tested.
產品規格
Technical Data:
calibration of high-strength chains.
Calibeating range of chain: Φ4 ~ Φ10mm
Stretching:max. 35mm
Moter power: 5.5kw
Chain calibration length: max. 320mm
Rate:<50r/min
Air pressure:>0.5Mpa
Total weight: appr. 3100kg
Hangzhou Polywin Machinery Co., Ltd. www.polywincn.com is located in Hangzhou City, China and specializes in manufacturing and exporting chain manufacturing series machinery， such as Automatic Chain Bending Machine, Automatic Chain Welding Machine, Automatic Chain Calibration Machine, Automatic Chain Proof Testing Machine, Automatic Chain Cutting Machine, Automatic Chain Marking Machine, Automatic Chain Bend Test machine, Chain Twisting Machine , Tire Chain Making Machines, Chain Heat Treatment Machine etc..
