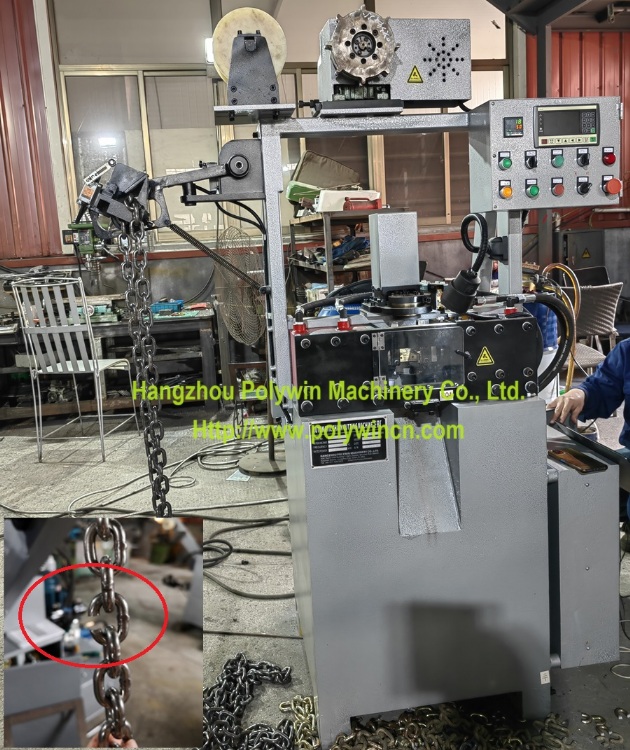

Automatic Chain Cutting Machine
產品型號：CECC-10
產品分類：自動化設備/產業機械 / 特殊工作機械 / 直線機（金屬線材校直，自動定長切斷）
產品特色
Automatic Chain Cutting Machine, Cutting odd and even chains
產品規格
Hangzhou Polywin Machinery Co., Ltd. www.polywincn.com is located in Hangzhou City, China and specializes in manufacturing and exporting chain manufacturing series machinery， such as Automatic Chain Bending Machine, Automatic Chain Welding Machine, Automatic Chain Calibration Machine, Automatic Chain Proof Testing Machine, Automatic Chain Cutting Machine, Automatic Chain Marking Machine, Automatic Chain Bend Test machine, Chain Twisting Machine , Tire Chain Making Machines, Chain Heat Treatment Machine etc..
|
Model Parameters |
CECC-10
|
|
Control mode |
PLC + servo program control + text display |
|
Parameter setting mode |
Text input |
|
Max. chain cutting dia. |
G80, ∅5-10mm |
|
Min. chain cutting links |
>2 |
|
Max chain moving speed |
30m/minute , servo adjustment |
|
Max tractive force |
115 N/M |
|
Max output of hydraulic cylinder |
339KN/15Mpa |
|
Working pressure of hydraulic system |
10Mpa |
|
Total power KW/Voltage |
5.0/380V |
|
Total amount of cutting links setting |
Total cutting amount reaches the set value,stop machine & alarm |
|
Auto stop function of chain stuck |
Yes |
|
Auto stop function of chain lacking |
Yes |
|
Hydraulic oil type |
#46 antiwear hydraulic oil |
|
Dimension (LxWxH :m) |
1.2x1.0x1.9 |
|
Weight |
1 T |
