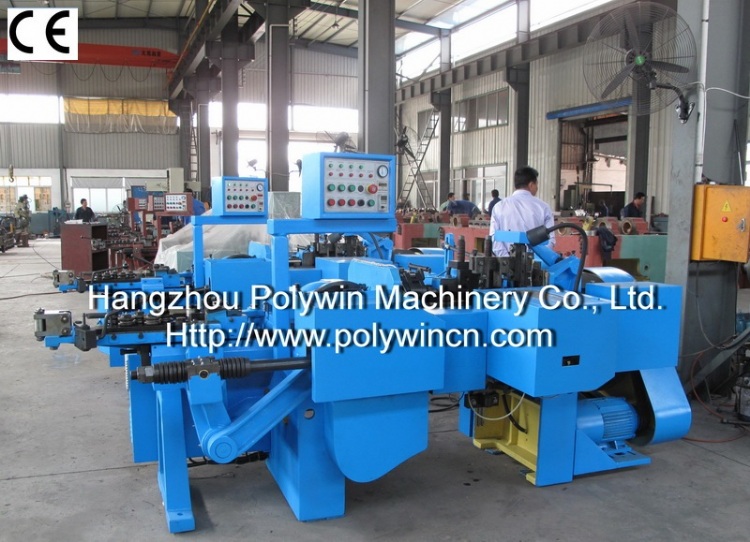

Chain Bending Machine
產品型號：CE02B-10
產品分類：自動化設備/產業機械 / 特殊工作機械 / 金屬線材之其他加工機
產品特色
Automatic chain bending machine is a machine for the production of continuously bent round steel chains which can then be electrically welded by a separate machine.
The chain is pre-bent by means of bending steels in two stations and then the links are closed in a third bending process.
產品規格
|
Article No. |
CE02B-10 (6~11mm) |
|
Wire diameter (up to 750N/mm²) |
6~11mm |
|
Inside link length (pitch) |
18-55 mm |
|
Outside link width |
20-50 mm |
|
Wire infeed length |
50-150 mm |
|
Output, chain links |
35-50 pcs./min. |
|
Power |
5.5 kw |
|
Weight |
3800kg |
|
Size |
3.4x1.9x1.6(m) |
Hangzhou Polywin Machinery Co., Ltd. www.polywincn.com is located in Hangzhou City, China and specializes in manufacturing and exporting chain manufacturing series machinery， such as Automatic Chain Bending Machine, Automatic Chain Welding Machine, Automatic Chain Calibration Machine, Automatic Chain Proof Testing Machine, Automatic Chain Cutting Machine, Automatic Chain Marking Machine, Automatic Chain Bend Test machine, Chain Twisting Machine , Tire Chain Making Machines, Chain Heat Treatment Machine etc..
