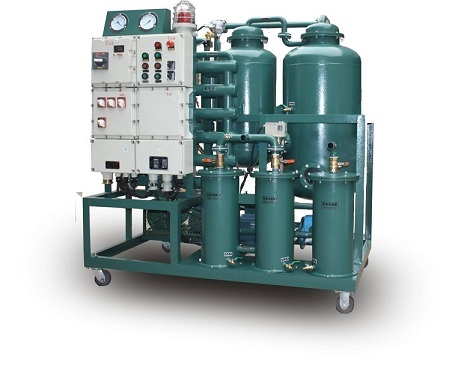

Vacuum Turbine Oil Purifier, Turbine Oil Filtration System
產品型號：643236
產品分類：自動化設備/產業機械 / 化工機械 / 分離機與篩選機
產品特色
Advantages
Rapidly remove the free water in the oil
High precision, large pollutant-containing capacity and long-lived filter cartridge
Working online
Low noise, easy operation, long time free maintenance and low energy consumption
Equipped with indicator for changing filter elements and automatic stop device for overloaded filters.
Equipped with emergency stop device and power overload to protect the motor.
With functions of phase-sequence, open-phase protection and sudden shut-down safety control.
Liquid-ring vacuum pump.
Optional:
PLC intelligent controller
Online moisture tester and online particle detector
Mobiles style with four wheels
Fully enclosed, conceal eaves, canvas and open etc.
產品規格
| Item | Unit | K10 | K20 | K30 | K50 | K100 | K150 | K200 | K300 | |
| Flow rate | Liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 24000 | |
| Working Vacuum Degree | MPa | -0.06 ~-0.095 | ||||||||
| Working Pressure | MPa | ≤ 0.3 | ||||||||
| Temperature Range | ℃ | 20 ~80 | ||||||||
| Water content | PPM | ≤50 | ||||||||
| Impurity content | μm | ≤5 | ||||||||
| Gas content | % | ≤0.1 % | ||||||||
| Cleanness | NAS | ≤6 grade (NAS1638) | ||||||||
| Demulsification value | min | ≤15 (GB/F 7305) | ||||||||
| Power Supply | 3 Phase, 50 Hz, 380V (or as per requirement) | |||||||||
| Heating power | kW | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 | |
| Total power | kW | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 | |
| Inlet/outlet caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 | |
| Weight | kg | 400 | 450 | 500 | 600 | 700 | 900 | 1050 | 1550 | |
| Dimension | Length | mm | 1280 | 1350 | 1350 | 1400 | 1500 | 1500 | 1600 | 1800 |
| Width | mm | 750 | 900 | 950 | 950 | 1000 | 1200 | 1350 | 1400 | |
| Height | mm | 1450 | 1450 | 1500 | 1600 | 1650 | 1800 | 1800 | 1850 | |
