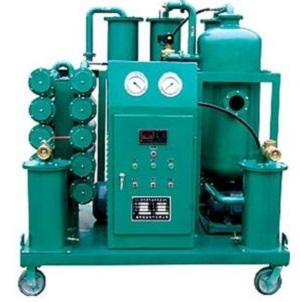

Multifunctional Lubricating Oil Purifier
產品型號:455322
產品分類:自動化設備/產業機械 / 化工機械 / 分離機與篩選機
產品特色
Application
Used for purifying lubricating oil
Used for purifying, replacing, and replenishing circuit-breaker lubrication oil applied by hydraulic mechanism of SF6 circuit breaker protector in various power stations.
For purifying water glycol.
Advantages
With isolated build-in oil pump, able to purify oil continuously, and with filtration precision NAS 5-7.
Able to absorb all water content which caused by temperature difference.
Equipped with stopping devices of electric leakage, overload, and filter saturation to guard the motor.
With conversion devices for oil pumping and purification to realize convenient biservice functions of oil pumping and purification.
With positive and negative switch to avoid wiring interference of three phase power supply.
With indicators for filter cartridge replacement.
Easy to use and maintain.
產品規格
Item | Unit | K10 | K20 | K30 | K50 | K100 | K-150 | K200 | K300 | |
Flower Water | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
Vacuum Range | Mpa | -0.06~-0.095 | ||||||||
Working Pressure | Mpa | ≤0.5 | ||||||||
Working Temperature |
°c | 30~90 | ||||||||
Working Noise | dB(A) | 65 | 68 | 68 | 70 | 75 | 78 | 80 | 85 | |
Heating Power | KW | 18 | 24 | 36 | 42 | 54 | 66 | 72 | 90 | |
Total Power | KW | 20 | 26 | 38 | 45 | 57 | 72 | 85 | 105 | |
Inlet(outlet) Diameter | mm | 25 | 25 | 32 | 42 | 42 | 48 | 48 | 60 | |
Net Weight | Kg | 320 | 500 | 550 | 650 | 1050 | 1150 | 1450 | 2180 | |
Over Dimension |
L | mm | 1000 | 1100 | 1300 | 1450 | 1500 | 1500 | 1550 | 1600 |
W | mm | 800 | 900 | 1000 | 1100 | 1200 | 1250 | 1250 | 1300 | |
H | mm | 1500 | 1600 | 1700 | 1800 | 1850 | 1900 | 1950 | 2000 | |
Water Content |
ppm | ≤100 | ||||||||
Demulsifying | min | ≤15min | ||||||||
Cleanness | NAS | ≤6 | ||||||||
The Machine Miscellaneous Quality | % | No |
