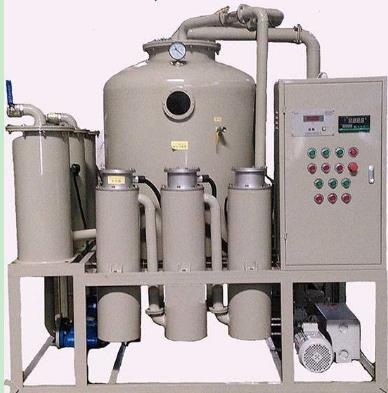

Decolorizing Oil Purifier
產品型號：899987
產品分類：自動化設備/產業機械 / 化工機械 / 分離機與篩選機
產品特色
Application:
It is suitable for metallurgical and powder plant, spring steel plate plant, fertilizer plant, power plant, cement plant, pharmaceutical factory, Steel Corp, automobile manufacturer, machine tool plant, motor factory, petro chemical, railway and other industrial and mining enterprises. The types of oil that can be processed include: oil, machinery oil, refrigerating oil, air compressor oil, hydraulic oil, quenching oil, gear oil, emulsified oil, especially heavy oil, too much oil and so on. The machine will purify and regenerate various contaminated lubricating oils after use, that is, remove the water soluble substances, gas, mechanical impurities, acid and alkali and other harmful substances in the oil. And ensure that the processed oil can improve its cleanliness, and make the movement viscosity, flash point and so on to meet the national standard of oil products.
產品規格
| Item | Name | Unite | K20 | K30 | K50 | K70 | K100 | K150 | K200 | |
| Index | Flow | L/min | 20 | 30 | 50 | 70 | 100 | 150 | 200 | |
| Working vacuum degree | MPa | -0.08 — -0.095 | ||||||||
| Working pressure | MPa | ≤0.4 | ||||||||
| Constant temperature control range | ℃ | 60 — 80 | ||||||||
| Power Supply | V | 380V/50Hz(or custom made) | ||||||||
| Working noise | dB(A) | ≤78 | ||||||||
| Total power | kW | 25 | 28 | 37 | 47 | 56 | 68 | 78 | ||
| Inlet and outlet pipe diameter | mm | 33 | 33 | 48 | 48 | 60 | 60 | 60 | ||
| Equipment weight | Kg | 400 | 450 | 550 | 700 | 800 | 900 | 1200 | ||
| Overall dimensions | L | cm | 198 | 200 | 225 | 230 | 245 | 280 | 320 | |
| W | cm | 87 | 87 | 97 | 105 | 150 | 140 | 150 | ||
| H | cm | 160 | 168 | 188 | 200 | 210 | 230 | 240 | ||
| After treated | Water content in oil | % | Non(GB/T260) | |||||||
| Gas content in oil | % | ≤0.1(GB/T423) | ||||||||
| Mechanical impurity | % | Non(GB/T511) | ||||||||
