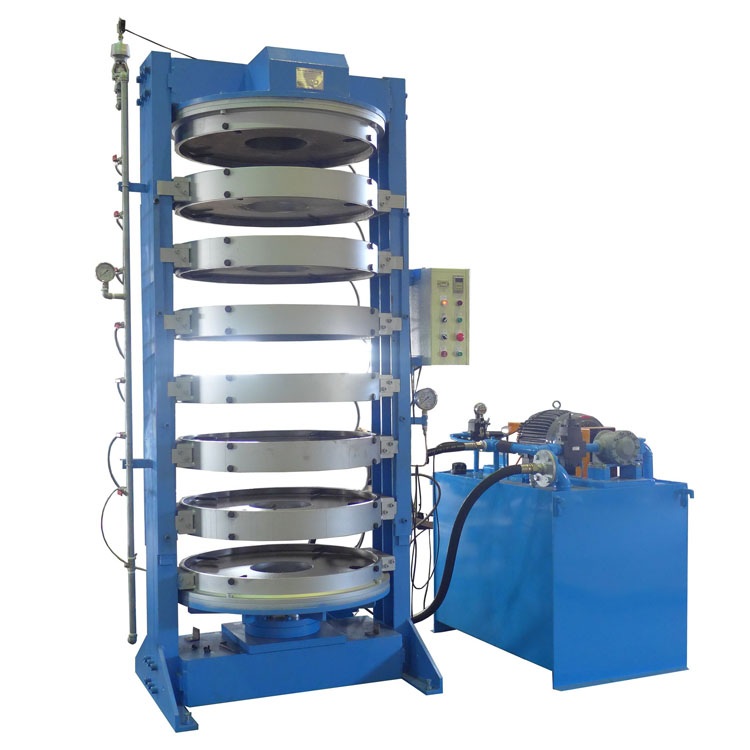

Tire curing press ( 7 daylight )
產品型號：Tire curing press ( 7 daylight )
產品特色
•PHT hydraulic tire presses were developed in response to tire manufacturers strong requirement for better tire uniformity, less energy consumption.
產品規格
- Model : PHT - 28
- Vulcanized tire size : B/C
- No. of daylight : 6 ~ 7
- Platen outside dia (mm) : 918
- Mold thickness (mm) : 100 ~ 120
- Clamping force (tons) : 75
- Hydraulic working pressure : 130 kg / cm2
- Steam platen pressure : 8 kg / cm2
- Curing system : Steam
- Model : PHT - 19
- Vulcanized tire size : B/C, M/C
- No. of daylight : 5
- Platen outside dia (mm) : 750
- Mold thickness (mm) : 60 ~ 100
- Clamping force (tons) : 48
- Hydraulic working pressure : 130 kg / cm2
- Steam platen pressure : 8 kg / cm2
- Curing system : Steam
- Model : PHT - 20
- Vulcanized tire size : B/C, I/D
- No. of daylight : 5
- Platen outside dia (mm) : 560
- Mold thickness (mm) : 60 ~ 200
- Clamping force (tons) : 48
- Hydraulic working pressure : 130 kg / cm2
- Steam platen pressure : 8 kg / cm2
- Curing system : Steam
