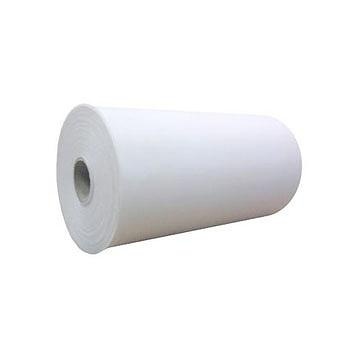

Liner for tyre
產品型號：B8, PP Liner
產品特色
•These liner are supplied in B 8( warp : nylon, weft : polyester ), and PP ( warp and weft : polypropylene ). All liner have been heat treated to enhance stability.
•In some applications, like in the topping process, liner must have stiffer transverse to prevent rubberized tire cord from curling and folding together. B 8 liner with its proper stiffness in transverse is the best choice, Where as in the bias-cutting process, both B 8 and PP liners can be used.
產品規格
- Item No. : PP Liner
- Material : Warp PP 400 D/1, Weft PP 750 D/1
- Cord density : Warp 50 +/- 2, Weft 28 +/- 1 Epi
- Tensile strength : Warp Min 27, Weft Min 27 kg/cm
- Shrinkage @ 120c x 30 : Warp Max 5, Weft Max 1 %
- Fabric gauge : 0.38 +/- 0.08 mm
- Fabric weight : 195 +/- 15 g/m2
- Item No. : B8 Liner
- Material : Warp N6 420 D/1, Weft PET 1000 D/1
- Cord density : Warp 50 +/- 2, Weft 28 +/- 1 Epi
- Tensile strength : Warp Min 39, Weft Min 72 kg/cm
- Shrinkage @ 120c x 30 : Warp Max 5, Weft Max 1 %
- Fabric gauge : 0.38 +/- 0.08 mm
- Fabric weight : 250 +/- 15 g/m2
