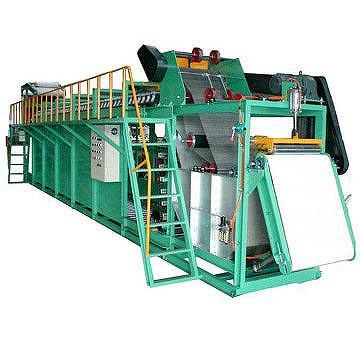

Batch off cooling machine
產品型號：Batch off cooling machine
產品特色
PHT high performance batch-off is designed to handle slabs of rubber compound with a maximum width of up to 650 mm. Several stackers and other options are available to meet all your requirements.
產品規格
- Model : PHT - 610
- For mixer’s size : 50L ~ 100L
- Max. sheet width : 650 mm
- Sheet thickness : 4 - 10 mm
- Max sheet inlet speed : 30 m / min
- Distance between hanger : 150 mm
- Sheet storage capacity : 1075 kgs
- Effective hanging bar : 43 pcs
- Cooling method : Water / Air cooling
- Sheet inlet section motor : 2 HP
- Storage section motor : 3 HP
- Continuous stacker motor : 1 HP
- Motor : 2 HP with inverter
- Industrial cooling fan : 18” x 1/2 HP x 12 sets
- Total power : 14 HP
- Electric control : PLC control system
- Sheet temp. after cooling : ＜40 °C
- Machine dimension : L 1200 x W 167 x H 300 cm
- Optional attachment : Continuous stacker, Stripper device, Auto cutter device
- Model : PHT - 700
- For mixer’s size : 110L ~ 150L
- Max. sheet width : 700 mm
- Sheet thickness : 4 - 10 mm
- Max sheet inlet speed : 30 m / min
- Distance between hanger : 150 mm
- Sheet storage capacity : 1500 kgs
- Effective hanging bar : 52 pcs
- Cooling method : Water / Air cooling
- Sheet inlet section motor : 2 HP
- Storage section motor : 3 HP
- Continuous stacker motor : 1 HP
- Motor : 2 HP with inverter
- Industrial cooling fan : 16” x 1/2 HP x 28 sets
- Total power : 22 HP
- Electric control : PLC control system
- Sheet temp. after cooling : ＜40 °C
- Machine dimension : L 1350 x W 190 x H 370 cm
- Optional attachment : Continuous stacker, Stripper device, Auto cutter device
