Working principles

1. A vortex produced by the mixing impeller sucks the soluble powder or liquid towards the impeller
2. After reaching the impeller, the fluid flows in a radical direction rush to the tank wall due to the centrifugal force
3. After reaching the tank wall, the fluid travels upwards and then circulates down to the suction end of impeller
4. The overall bulk movement and the mixing action around the mixer ensure that a homogeneous, mixing, dissolving, dispersing blend is achieved

Design and features

1. High blending capacity with low shear
2. Magnetic coupling, no risk of leakage
3. CIP/SIP design
4. Bayonet coupling for easy assembly/disassembly of the drive unit
5. Low power consumption
6. Effective blending even of small volume
7. Very low particle generation
8. Bottom mounted. Excellent for suspensions
9. Frequently converter recommended

Application

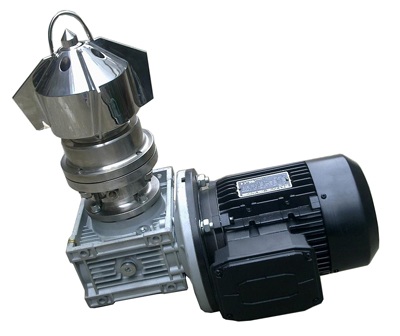

1. Bottom entry magnetic agitator, also called magnetic mixer, presents a highly hygienic solution for the applications of dispersion, dissolution, homogenization and mixing of a wide range of media in the pharmaceutical industry
2. The magnetic agitators are especially useful in sterile process;   absence of mechanical seals prevents any contact with the exterior environment
3. The most common applications are dissolution of glucose in dematerialized water, maintenance of vaccine suspensions homogeneity and agitation of blood fractions, also for pharmaceutical such vaccine mixing

Selection table：

 Note: 1, a few general parameters noted above, pursuant to the request of the customer, mixing form and concentration and viscosity of the medium, temperature, pressure and change.
