High-speed Centrifugal Pump
產品型號：HSP
產品特色
1. HSP-V vertical high-speed centrifugal pump owns features of good performance, compact structure and high reliability.
2. HSP-H horizontal high-speed centrifugal pump is single-stage, single-suction and overhung pump, which is mainly composed of motor, gearbox, pump unit, lubrication system and baseplate.
產品規格

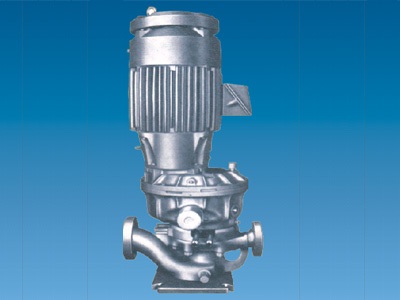

Vertical High-speed Centrifugal Pump
- HSP-V vertical high-speed centrifugal pump owns features of good performance, compact structure and high reliability.
- Interchangable parts and components with international pumps.
- It’s able to replace multi-stage pumps and reciprocating pumps.
- Max. flowrate: 120m³/h
Max. Head: 1920m
Max. Suction pressure: 6.8MpaG
Max power: 160kW
Working temperature:-202 ~+644℉
|
NO |
Pump Type |
HSP-V1 |
HSP-V2 |
HSP-V4A |
|
1 |
Max. Flow ( m3/h) |
150 |
52 |
250 |
|
2 |
Max. Head (m) |
1920 |
915 |
2180 |
|
3 |
Max. Motor Power(kW) |
132 |
37 |
315 |
|
4 |
Speed Range (rpm) |
4950~23700 |
4900~14179 |
4950~23700 |
Horizontal High-speed Centrifugal Pump
- HSP-H horizontal high-speed centrifugal pump is single-stage, single-suction and overhung pump, which is mainly composed of motor, gearbox, pump unit, lubrication system and baseplate.
- It has owns features of simple structure, easy maintenance, sale characteristic parameters, high reliability and long service life.
- A backflow stabilizer is integrated into the GSB-W5/W7 pump units, which improves the pump performances at the low flow section and broadens the flow regulating ranges. Advanced high speed thrust bearings enable the suction pressure to reach 10 Mpa.
|
O |
Pump Type |
HSP-H 3A |
HSP-H 4 |
HSP-H 5 |
HSP-H 7 |
|
1 |
Max. Flow ( m3/h) |
110 |
30 |
250 |
300 |
|
2 |
Max. Head (m) |
650 |
500 |
3000 |
3600 |
|
3 |
Max. Motor Power(kW) |
132 |
37 |
400 |
600 |
|
4 |
Speed Range (rpm) |
6700~9800 |
6100~30000 |
7000~16000 |
7000~19000 |
