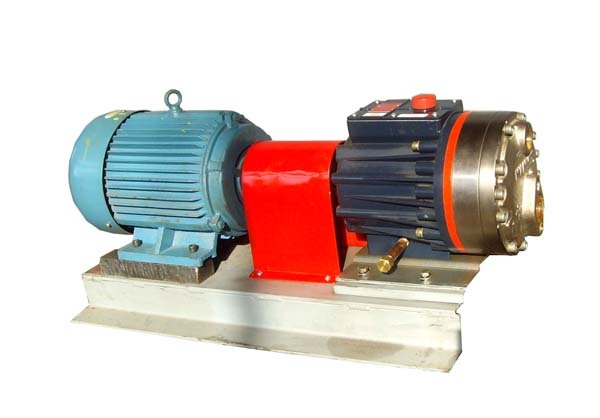

Multi-plunger diaphragm pump
產品型號：H2S
產品特色
The following diagram is showing the structure of multi-plunger high pressure diaphragm pump. The pump body consists two parts: An oil room full of lubricating oil B pump room of pressurized liquid delivery. The oil room and pump room are separated by diaphragm , and there is no drive device or seal device producing friction in the pump room.
產品規格
Features
- Corrosion resistant and wear resistant
Special materials with high corrosion resistance and wear resistance are used for the body and chamber of the pump.
- Easy to maintain with low cost
No need to open the pump body in order to change diaphragm and valve.
- High pressure & High efficiency
Motor efficiency could be as high as 85% and pressure could be 0~150kgf/cm²
- Low nosy and low ripple
Smooth operation due to multi-plunger structure. Additionally, oil pressure drive diaphragm can control the pulse and maintain low noisy.
- User-friendly
Defects related shaft sealing can be avoided due to o seals in this pump and no water exhaling due to effective self-suction. The bilateral rotation of the pump shaft makes it easy for operation.
Application
- To deliver slurry containing fine particles, such as dye slurry, paint slurry, etc. so as to match high pressure granulation equipment, etc.
- Reverse osmosis membrane pressurized water delivery equipment and matching valve pressure test equipment of sea water desalinating unit, ultra pure water preparation equipment, etc.
- To convey sludge to pressure filter, inhale sludge from or convey sludge to gas explosion groove.
- High pressure cooling liquid of deep-hole drilling machine and machining centre for deep-hole processing or ceramic grinding.
- The cleaning of precision machining components, printed circuit board and post processing of burr.
- The swill of food factory conveyor belt or machine; high-pressure cleaning of ships or vehicles.
- To convey high tricky liquid, such as glue, adhesive, jam, wheat paste, cream, etc.
Selection Table
Type
Pressure（MPa）
Flow（m3/h）
Rotating speed（r/min）
H2S-30
0-10
0-0.4
0-600
H4S-30
0-10
0-0.8
0-600
H2S-50
0-10
0-1.3
0-550
H4S-50
0-10
0-2.6
0-550
H2S-75
0-10
0-3.2
0-500
H4S-75
0-10
0-6.4
0-500
H2S-100
0-10
0-8.5
0-450
H4S-100
0-10
0-17
0-450
H2S-125
0-10
0-14
0-400
H4S-125
0-10
0-28
0-400
H2S-160
0-10
0-31
0-400
H4S-160
0-10
0-62
0-400
H2S-200
0-10
0-53
0-350
H4S-200
0-10
0-106
0-350
