Feature

Hygienic construction

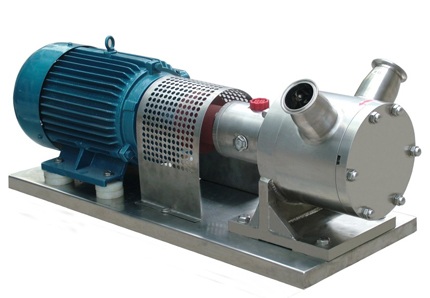

The Eco sine, apart from the software components is constructed entirely from stainless steel, including the power frame.

Gentle product handling

The gentle pumping action means no damage to shear sensitive products during the pumping part of the process.

High suction

The Eco sine is capable of creating 0.85 bar suction pressure thanks to its continuously open suction cavity.

Low-pulsation product flow

The low-pulsation product flow prevents vibration in pipelines and ensures a rock-steady discharge flow which in turn means quicker emptying and/or filling, more accurate readings from flow meters and more efficient heat transfer from heat exchanger units.

Space-saving

The Eco sine is a compact, space saving design. It is ideal for space critical installation.

Energy saving

The Eco sine requires a minimum amount of torque, far more economical to run than any air operated diaphragm pump, with smaller power requirements than any rotary lobe type pump.

Bi-Directional

The Eco sine is birotational, so can be operated in either the clockwise or counter-clockwise direction without modifying any of the pump internal components.

No aeration or creation of foam

No aeration is created during product transfer thanks to the low shear gentle pumping action.

Quick and easy Maintenance

A maximum of 10 minutes is required to strip the pump and inspect/change the wear parts. No special technical skills are required to open and repair the pump. After a brief training session even the production operators will be able to perform all necessary repairs or inspections on the pump.

High viscosity

The Eco sine is able to transport a wide range of viscosities up to 1,000,000 CPS
