Name

Item

Value

Max. size of worktable

Length× Width

3000×3000mm

Max. thickness

250mm

Worktable

Width of T slot

28mm

Bearing Capacity

3t/㎡

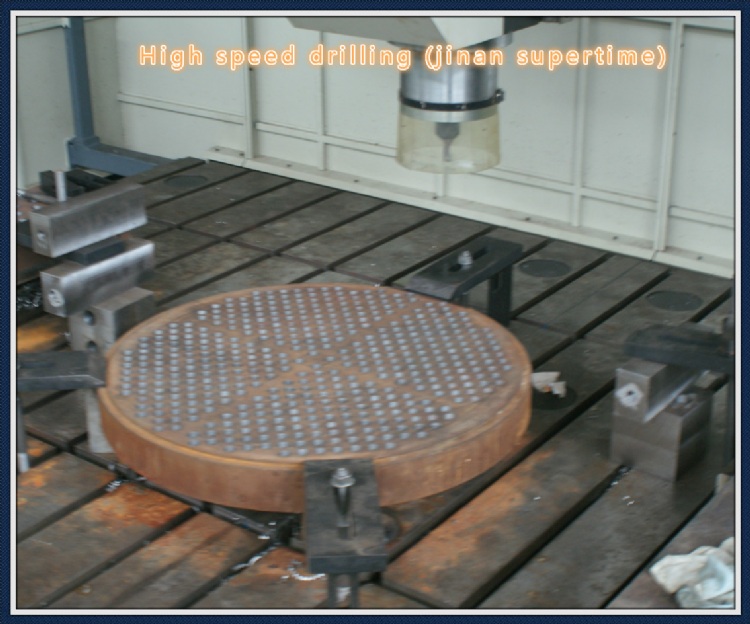

Drilling spindle

Max. drilling diameter.

Φ40mm(Carbide drill head)

Φ50mm(High-speed steel twist drilling head)

Max. tapping diameter

M30×2

Rotation speed of spindle(r/min)

30—2800r/min

Morse Taper

BT50

Servo motor power of spindle (S1)

2×22kW

Max. torque of spindle ( n≤600r/min)

350N·m

Distance between bottom surface of spindle and worktable

350-850mm

Longitudinal moving of gantry (X axis)

Max. stroke of X axis

3000mm

Movement speed of X axis

0-8m/min

Servo motor power /torque of X axis

2×3kW/28.4N·m

Positioning /Repositioning precision of X axis

0.08mm/0.04mm

Transverse movement of drilling head

 (Y axis)

Max. distance between two drilling heads of Y axis

3000mm

Min. distance between two drilling heads of  Y axis

900mm

Movement speed of Y axis

0-8m/min

Servo motor power /torque of Y axis

2×3kW/28.4N·m

Positioning /Repositioning precision of Y axis

0.08mm/0.04mm
