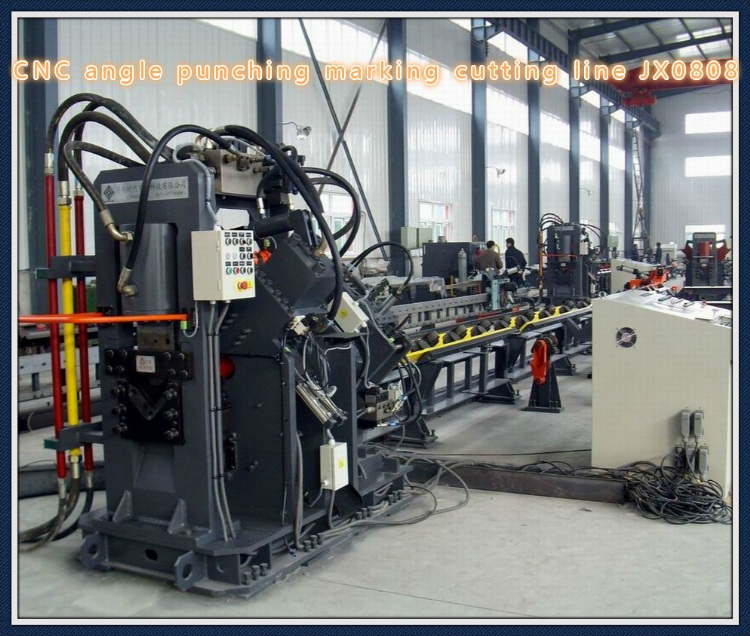

No.

Description

Unit

Parameters

1

Angle size

mm

30X30X3-75X75X8

2

Max. Punching dia.

mm

26

3

Max. Punching nominal force

KN

400

4

Max. Marking nominal force

KN

600

5

Marking groups & characters dimension

Group/mm

4Groups  14×10×19

6

Number of punching unit

pc

2

7

The number of punch for each unit

pc

2

8

Shearing nominal force

KN

600(Single shearing)

9

Adjustment range of stadia.

mm

10-70

10

Max. Infeed angle size

mm

12000

11

Max. Outfeed workpiece size

mm

10000

12

CNC axes No.

Pc

3

13

Machining accuracy

Meet GB / T 2694-2010 standard

14

Data interface( keyboard, U disk input)

Convergence with lofting software

Function

Punching  Marking  Shearing

Model

JX1412

JX1412

Angle size

16Mn

(σb=480N/mm2)

40×40×3~140×140×12

40×40×3~140×140×12

Angle size

Q235A

(σb=400N/mm2)

40×40×3~140×140×14

40×40×3~140×140×14

Max. punching

Capability(D×T)

16Mn

(σb=480N/mm2)

Φ26×12

Φ26×12

Max. punching capability(D×T)

Q235A

(σb=400N/mm2)

Φ26×12

Φ26×12

Punching nominal force(KN)

550

550

Marking nominal(KN)

600

600

Shearing nominal(KN)

1000

1800

Work piece length max.(m)

10

10

Adjustment range of stadia(mm)

20-110

20-110

Punchers number each side

2

2

Marking groups

4

Dimension mode(mm)

14×10 or 16x10

Shearing mode

Double-blade cutting

Single blade cutting

Axes number

3

In feed speed(m/min)

40

Overall dimension(m)

32×7×2.6

23.8×7×2.2

Net weight(Kg)

   17000

17500
