產品型號：SWZ700

產品分類：工具機產業機械 / 鑽床 / CNC鑽床

SWZ Sries CNC 3D beam drilling lie machine
Beam line CNC machine
CNC beam drilling machine
H beam ,Channel beam drilling machine

SWZ Sries CNC 3D beam drilling lie machine

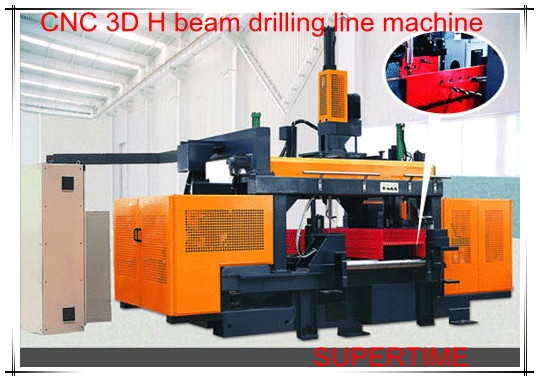

CNC Drilling Machine for Beams Model SWZ700D

A. Main Composing Parts

This machine is composed of mainframe, hydraulic system, feeding conveyor unit & electrical control system etc.

B. Product feature

Equipped with three drilling spindles, the drilling process finished when the work piece going through the equipment.
Three drilling spindles can drill holes simultaneously, equipped with self-controlled stroke drilling spindles.
No need to set thickness of work piece and length of drills, with automatic speed conversation, high efficiency from rapid feeding to work feeding.
CNC & PLC control systems, CRT display, operating software based on WINDOWS platform, simply and convenient programming and visual preview.
High-grade atomizing cooling system, prolong the drill’s work life.
Each drilling spindle, equipped with professional gear-motor from famous products.
Main primary hydraulic pressure, electric components are domestic and international famous products

C. Technical Specification of SWZ700D

Name			Unit	Specifications
workpiece	Max. width		mm	700
	Min. width		mm	100
	Max. height		mm	400
	Min. height		mm	50
	Min. length of workpiece		mm	1800
	Max. weight of workpiece		kg	5000
spindle	No. of Spindles		piece	3
	Rotation speed of spindle		r/min	180 ~ 560
	Feeding movement speed		mm/min	20 ~ 300
	Stroke of each spindle		mm	280
	Drilling diameter		mm	￠12.5 ~￠30
	Power of each spindle		kW	4
	Stroke of mean line	Top unit Z direction (horizontal）	mm	40 ~ 620
		left side X direction (vertical）	mm	30~380
		Right side Y direction (vertical）	mm	30~380
	Type	Taper module		3#
		Morse taper		2#,3#
Clamp workpiece	horizontal clamping force		kN	15.7
	Vertical clamping force		kN	6.4
Motor power	feeding		kW	1×4.0
	spindle		kW	3×4.0
	top unit X axis		kW	1×1.0
	left unit Z axis		kW	1×1.5
	right unit Z axis		kW	1×1.5
	lateral clamping device moves		kW	2×0.12
	Hydraulic system		kW	1×5.5
Machine dimension	machine(L×W×H）		mm	Approx. 3600×1500×2500

Working temperature: 0℃ ~ 40℃

Power: Three phase four wire system

AC Voltage: 380V

Fluctuation of voltage: ±10%

Frequency: 50 Hz
