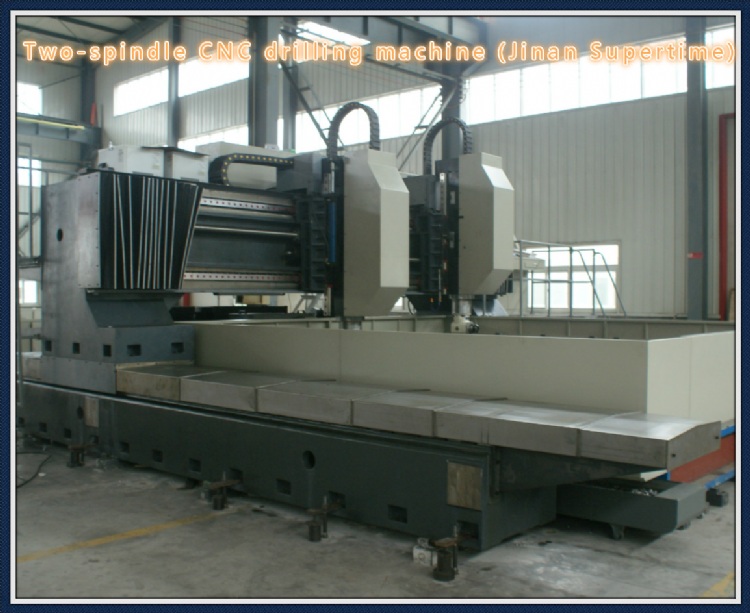

GZP series CNC drilling tapping milling machine for tube sheet
產品型號：GZP3030,GZP4040
產品特色
GZP series CNC drilling tapping milling machine for tube sheet
Plate drilling machine
Tube sheet drilling machine
CNC gantry drilling machine
產品規格
GZP series CNC drilling tapping milling machine for tube sheet
GZP series high speed drilling machine
This equipment is mainly composed of bed and vertical slide, gantry and horizontal slide, the vertical ram drilling power head, chip conveyor, hydraulic systems, cooling systems, centralized lubrication systems, electrical systems, pneumatic systems and other components.
A. Feature:
- Mainly used to drill flange, heat-exchanger ,tube-sheet and the inner & outer ring of big slewing bearing ring .
- Precision spindle , high speed drilling with slight milling function.
- Directly transfer of CAD/CAM, automation and high precision can be realized.
- Spindle box of the machine are adopted cast iron formed resin bonded sand process and reasonable layout of ribs to provide good stiffness and steadiness.
- The bed and worktable of the machine are adopted cast iron formed resin bonded sand process and reasonable layout of ribs to provide good stiffness .Good rigidity ,and steady .
- The heavy spindle group with high quality adopted belt roller provides ultra-large torque output capacity.
Main specification of GZP3030/2
|
Name |
Item |
Value |
|
Max. size of worktable |
Length× Width |
3000×3000mm |
|
Max. thickness |
250mm |
|
|
Worktable |
Width of T slot |
28mm |
|
Bearing Capacity |
3t/㎡ |
|
|
Drilling spindle |
Max. drilling diameter. |
Φ40mm(Carbide drill head) |
|
Φ50mm(High-speed steel twist drilling head) |
||
|
Max. tapping diameter |
M30×2 |
|
|
Rotation speed of spindle(r/min) |
30—2800r/min |
|
|
Morse Taper |
BT50 |
|
|
Servo motor power of spindle (S1) |
2×22kW |
|
|
Max. torque of spindle ( n≤600r/min) |
350N·m |
|
|
Distance between bottom surface of spindle and worktable |
350-850mm |
|
|
Longitudinal moving of gantry (X axis) |
Max. stroke of X axis |
3000mm |
|
Movement speed of X axis |
0-8m/min |
|
|
Servo motor power /torque of X axis |
2×3kW/28.4N·m |
|
|
Positioning /Repositioning precision of X axis |
0.08mm/0.04mm |
|
|
Transverse movement of drilling head (Y axis) |
Max. distance between two drilling heads of Y axis |
3000mm |
|
Min. distance between two drilling heads of Y axis |
900mm |
|
|
Movement speed of Y axis |
0-8m/min |
|
|
Servo motor power /torque of Y axis |
2×3kW/28.4N·m |
|
|
Positioning /Repositioning precision of Y axis |
0.08mm/0.04mm |
