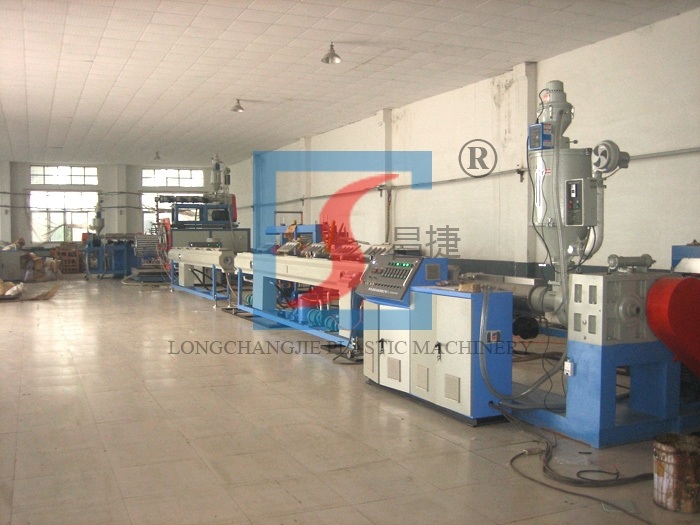

HDPE Large Diameter Hollow Wall Winding Pipe Production Line
產品型號：KFYPG-800 KFYPG-1200 KFYPG-1600 KFYPG-2200 KFY
產品特色
The extrusion line is mainly for producing large diameter hollow wall winding pipe ,Large diameter inding pipe (inner diameter from 50mm-2200mm) has high ring stiffness and high brunt intensity with structure It can be used for approxmate 50 years and hasmany advantages such as low cost assembly and easy operation ,ithstanding pressure corrosion resistant such as acid alkali and salt etc ,It is becoming as replacement of cement pipe and cast iron pipe nowdays Its beling widely used as sewerage and drinage pipe .
產品規格
he screw is the double-stage pressure reduction type, with special elements to promote the mixing plasticization, coordinated with the highly precise temperature control and high torque, the line can use full recyclable material. The two machines combined type feeding, spiral rotation foamed and high efficiency compound crafts ensure a high quality product. The special plastic and steel compounding technology ensures a reliable compounding, which highly enhances the pipe performance. The adjustable extruder frame is easy and flexible to operate. The PLC automatic control system is reliable and convenient for maintenance. Characteristic of pipe: high rigidity, light weight, low costs, good sealing performance of the connector; acid and alkali resistance, corrosion-resistance, and long service life, convenient for construction. The pipe is widely used as the underground water drainage system.
Main Technical Data:
| Model | KFYPG-800 | KFYPG-1200 | KFYPG-1600 | KFYPG-2200 | KFYPG-3000 | |||||
| Extruder | KFYSJ-65*30 | KFYSJ-50*30 | KFYSJ-65*33 | KFYSJ-50*30 | KFYPG-80*33 | KFYSJ-50*30 | KFYPG-90*33 | KFYSJ-65*30 | KFYPG-100*33 | KFYSJ-65*33 |
| Output (kg/h) | 250 | 120 | 300 | 120 | 500 | 150 | 750 | 250 | 900 | 300 |
| Pipe dia. (mm) | Φ200-Φ800 | Φ400-Φ1200 | Φ800-Φ1600 | Φ1200-Φ2200 | Φ2000-Φ3000 | |||||
| Production speed (m/h) | 2-16 | 2-12 | 1-6 | 0.5-5 | 0.3-3 | |||||
| Installed power (kw) | 180 | 250 | 300 | 400 | 500 | |||||
