Description:

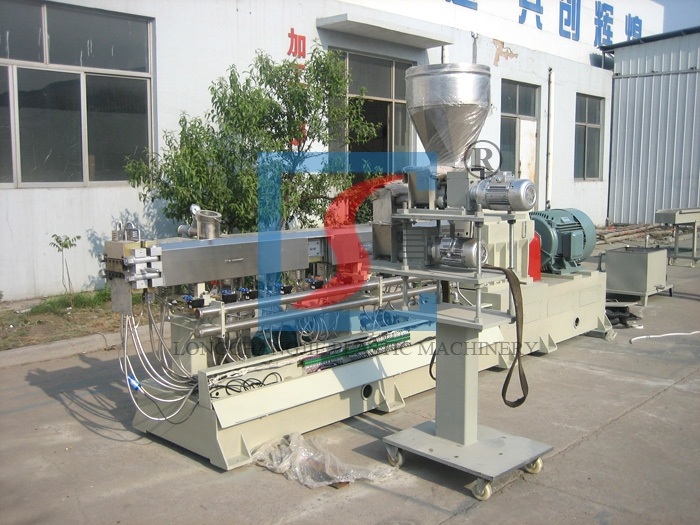

1) SJSH series of extruders with appropriate screws, dies and other auxiliaries can directly convert thermoplastic especially PVC powder into pipes, plates, sheets, films and profiles, and also provide functions of modifying and pelleting;

2) Uses double screw working together, improves production efficiency;

3) Uses assistant moulds to produce range of products;

4) Uses automatic operating system, saves up labor force.

Product introduction:

The barrel and screw is of building block type, full intermeshing type screw is easy to clean. The screws are able to arrange according to the different plastic material, has the advantages of interchangeability, strong adaptability, good mixing, plasticization and exhaust.

The material of the screw can be 38CrMoALA, under nitridation treatment; or made of alloy bushing which is anti-wear.

The heating of barrel is by cast aluminum, cooled by water.

The motor can be DC motor, equipped with silicon controlled speed regulator or British Eurotherm 590 speed regulator; or AC motor frequency speed regulator. The temperature controller is Japan RKC brand or China famous brand.

Applications:

-- Polymer blending, homogeneity, plasticization, filling modification and granulation.

-- Engineering polymer & glass fiber reinforcement.
-- Masterbatch, functional  parent granula, special material ,power coating material and cable material  reactive extrusion , degassing & devolatilization, etc

Characteristics:

1.Different kinds of pelletizing modes can meet specific material properties:water-cooling strand pelletizing,air-cooling hot-cut pelleting,water-ring pelletizing,under water pelletizing etc.

2.Modular principle design for screw configuration and barrel setup make combination and cleaning convenient,also easy to customers' requirements.
