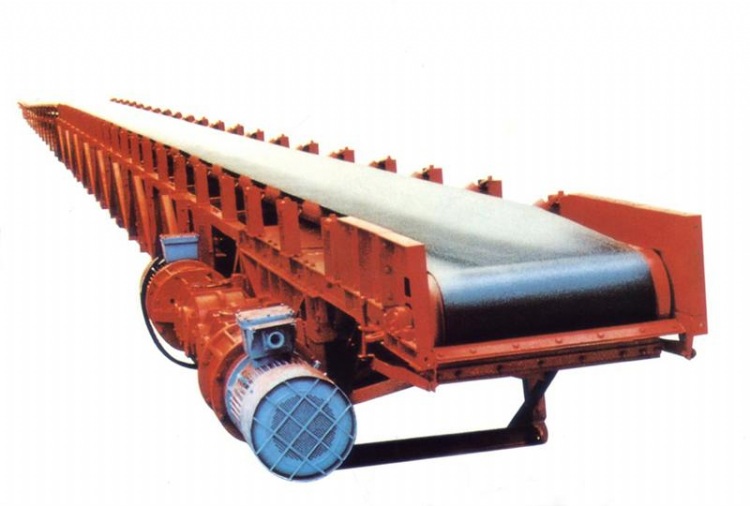

Belt conveyer
產品型號：400
產品分類：自動化設備/產業機械 / 其他產業機械 / 其他
產品特色
Belt conveyer Description:
Belt conveyer is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force.
The belt conveyer is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it Is a very important component of nonstandard machinery.
Features:
1. High capacity
2. Standard parts
3. Simple structure
4. Easy Maintenance
Technical Parameters:
產品規格
|
Belt Width(mm) |
Belt Length (m)/Power(kw) |
Belt Speed(m/s) |
Capacity(t/h) |
|||
|
400 |
≤12/1.5 |
12-20/2.2-2.4 |
16-20/3 |
20-25/3.5-7.5 |
1.3—1.6 |
40-80 |
|
500 |
≤12/3 |
12-20/4-5.5 |
18-22/5.5 |
22-30/5.5-7.5 |
1.3-1.6 |
80-190 |
|
650 |
≤10/3 |
10-15/4 |
15-20/5.5 |
20-30/7.5 |
1.3-1.6- |
130-320 |
|
800 |
≤10/4 |
10-15/5.5 |
15-20/7.5 |
20-30/11 |
1.3-1.6- |
280-550- |
|
1000 |
≤10/5.5 |
10-18/7.5 |
18-25/11 |
25-35/15 |
1.3-2.0 |
440-850 |
|
1200 |
≤10/7.5 |
10-20/11 |
20-25/15 |
25-35/18.5 |
1.3-2.0 |
660-1200 |
|
1400 |
≤10-20/11 |
20-25/15 |
25-35/18.5 |
35-45/22 |
1.0-2.0 |
800-1650 |
