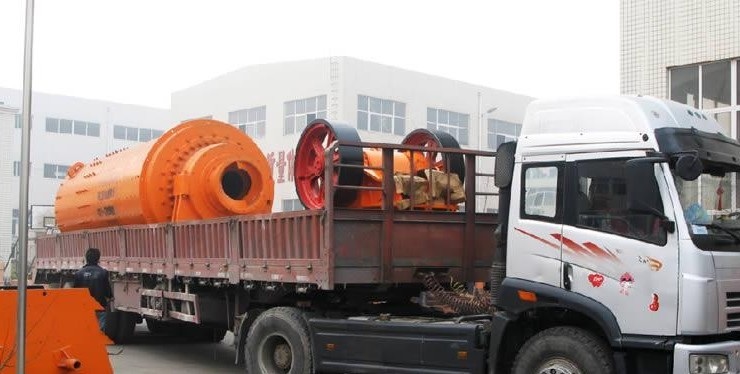

Ball mill
產品型號：Ф900×1800
產品分類：自動化設備/產業機械 / 其他產業機械 / 其他
產品特色
Application
Ball mills are widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Working principal:
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Features:
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous work are very obvious;
3. Barrel lining and grinding media can apply various abrasive materials;
4. Installation and adjustment are very convenient and easy to be operated.
產品規格
|
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size (mm) |
Discharging size(mm) |
Capacity |
Motor power(kw) |
Weight(t) |
|
(t/h) |
|||||||
|
Ф900×1800 |
36∼38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.5 |
|
Ф900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.7 |
|
Ф1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ф1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ф1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ф1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
16.8 |
|
Ф1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ф1500×57, 00 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
Ф1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
29 |
|
Ф1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
35.5 |
|
Ф1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
|
Ф1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
|
Ф2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
34.8 |
|
Ф2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
38 |
|
Ф2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
56.6 |
|
Ф2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
51.8 |
|
Ф2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
60 |
|
Ф2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
62 |
|
Ф2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
|
Ф2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ф2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ф2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
380 |
94 |
|
Ф2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
480 |
102 |
|
Ф3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
Up to process conditions |
800 |
137 |
|
Ф3600×4500 |
17 |
90 |
≤25 |
0.074-0.4, |
Up to process conditions |
850 |
158 |
|
Ф3600×6000 |
17 |
110 |
≤25 |
0.074-0.4 |
Up to process conditions |
1250 |
175 |
