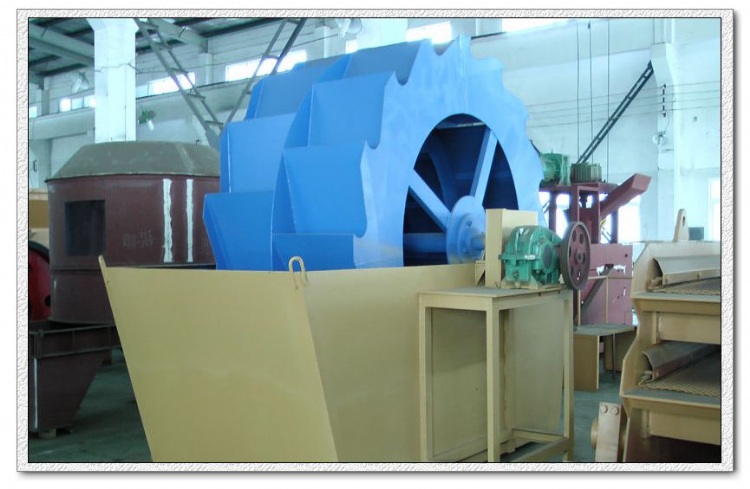

XL Sand Washer
產品型號:GWX915
產品分類:自動化設備/產業機械 / 其他產業機械 / 清洗設備
產品特色
Application:
The efficient sand washing machine of XSD series, which are developed on the basis of introducing foreign outstanding technology of the same kind of products , is a kind of cleaning equipment of international advanced level for sand and slag pellets.Sand washing machine is widely used for cleaning materials in the following industries:quarry, minerals, building materials, transportation, chemical industry, water conservation and hydro power, cement mixture station and so on.
Features:
1,It is of simple structure . The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water ,sand or some polluted things.
2,Being used for cleaning sand in quarries , it has many advantages compared with traditional spiral sand washing machine.
3,There is little loss for medium -sized and fine sand and stone powder . The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as sand for construction and cobble and broken stones for construction.
4,There are no other wear parts except the screen mesh.
5, It has longer service life and little maintenance charge.
產品規格
Model |
Helix Diameter (mm) |
Length of tube (mm) |
Selectedsize (mm) |
Capacity (t/h) |
Speed of helix (r/min) |
Electric motor power (t) |
Water consumption (t/h) |
Weight (t) |
Overall Dimensions (mm) |
GWX915 |
915 |
7585 |
=10 |
100 |
21 |
11 |
10-80 |
6.5 |
8500×2950×1930 |
2GWX915 |
915 |
7585 |
=10 |
200 |
21 |
2×11 |
20-160 |
11.8 |
8420×3765×2030 |
GWX1115 |
1115 |
9782 |
=10 |
175 |
17 |
15 |
20-150 |
10.18 |
10970×3945×4720 |
2GWX1115 |
1115 |
9782 |
=10 |
350 |
17 |
2×15 |
40-300 |
17.94 |
10970×5250×4720 |
