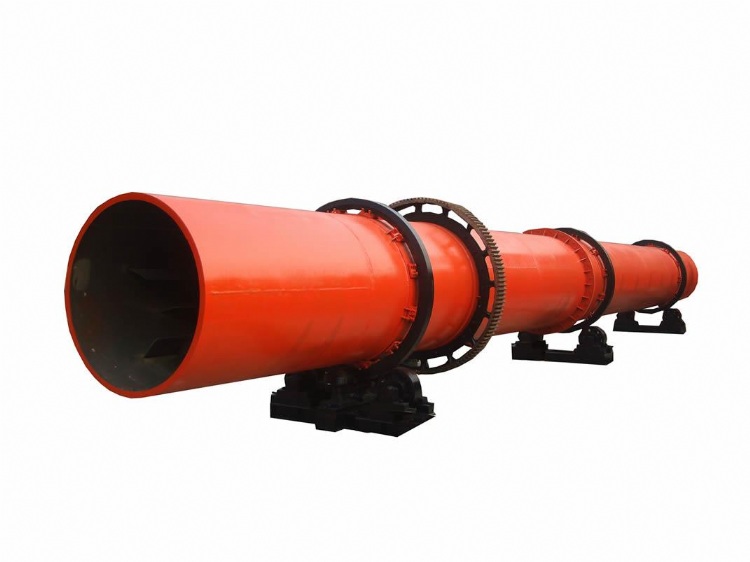

Cylinder Dryer
產品型號：GWΦ600
產品分類：自動化設備/產業機械 / 其他產業機械 / 乾燥機
產品特色
Cylinder Dryer Description:
Cylinder Drier is mainly used for drying wet materials in building construction, metallurgy, chemical industries, and it can dry various materials with strong adaptability. Besides, it is common drying device in cement plant with simple and reliable operation.
Working principle of the rotary dryer
Dry wet material is shipped to the hopper by belt conveyor or bucket elevator, and then through the feeding machine of the hopper into the feeding end. The feeding pipe’s slope is must greater than the material’s natural dip angle, so that the material can flow into the dryer smoothly. Dryer cylinder is a s rotating cylinder tilted with the horizontal slightly. Material from high to join, and the heat carrier from low to enter, and contact with the material in countercurrent. It also happen that heating medium and material flow into the cylinder together. With the rotation of the cylinder, the material operated to a bottom end by gravity. When the wet material moved forward in the cylinder body, it got the heat from the heat carrier directly or indirectly to heat the wet material to dry, then sends out in the discharge end by belt conveyor or screw conveyor. The cylinder body wall is equipped with a copy board, its function is to copy material up and down, and to increase the contact surface between the material and the airflow , in order to improve the drying rate and promote the material forward.. Heat carrier generally includes hot air and flue gas, etc. After heat carrier going through the dryer, it is generally needed to use cyclone to capture down the materials the gas brings. If you want to reduce exhaust dust load in further, you need to pass bag house or wet dust collector before let them out.
The features:
1. Reasonable design of raising board and angle ensure the material well-distributed and dry with less time, it has reliable operation and high energy utilization ratio, simple maintenance.
2. Adopt an adjustable center tug structure, the good cooperation of the tug and the rolling ring reduce the attrition and energy consumption.
3. The special structure of the dam-wheel decrease the horizontal thrust, when the machine working in inclination station, it has strong ability of anti-overloading, steady operation and high reliability.
4. High temperature resistance, it can use the high temperature to dry the material quickly,
5. Large capacity, few fuel consumption, low drying cost.
產品規格
|
Model(mm) |
Gradient (%) |
Speed (r/min) |
Inlet Temperature(C) |
Power (Kw) |
Capacity(m3) |
Weight (t) |
|
GWΦ600 |
3-5 |
3-8 |
≤700 |
3 |
1.69 |
2.9 |
|
GWΦ800 |
3-5 |
3-8 |
≤700 |
4 |
4.01 |
3.5 |
|
GWΦ1000 |
3-5 |
3-8 |
≤700 |
5.5 |
7.85 |
5.6 |
|
GWΦ1200 |
3-5 |
3-8 |
≤700 |
7.5 |
11.30 |
14.5 |
|
GwΦ1500 |
3-5 |
2-6 |
≤800 |
15 |
21.19 |
17.8 |
|
GwΦ1800 |
3-5 |
2-6 |
≤800 |
18 |
30.52 |
25 |
|
GWΦ2000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
45.59 |
33 |
|
GWΦ2200 |
3-5 |
1.5-6 |
≤800 |
22 |
68.38 |
53.8 |
|
GwΦ2400 |
3-5 |
1.5-5 |
≤800 |
37 |
90.43 |
60 |
|
GwΦ2500 |
3-5 |
1.5-5 |
≤800 |
55 |
141.3 |
78 |
|
GWΦ3000 |
3-5 |
1.5-5 |
≤800 |
75 |
176.6 |
104.9 |
