製袋機
產品型號：CWAP+C
產品分類：塑橡膠產業機械 / 塑膠機械 / 塑膠凸凹袋製造機
產品特色

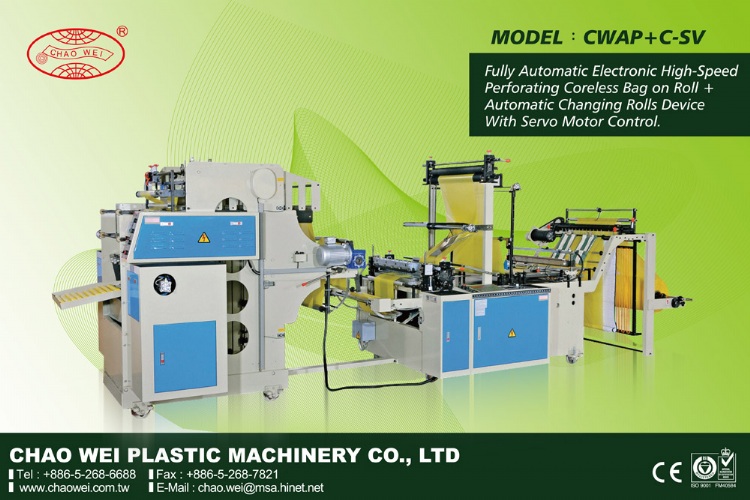

Fully Automatic Electronic High-Speed Perforating Coreless Bag On Roll A +Automatic Changing Rolls Device.
• Adopting automatic changing coreless rolls device.
• The folding device for C type & E type bags, there is no GAP in the gusset point.
• C & E type bag can save occupation space.
• This machine can produces table sheet, garbage bag, C type bag and E type bag.
• This machine can save Labors, time and is profitable in mass production.
產品規格
| Model | 2830 | 2842 | 3248 |
| BAG WIDTH (MAX.) | 18" (450 mm) | 26" (660 mm) | 30" (760 mm) |
| BAG LENGTH | 30" (760mm) | 42" (1066mm) | 48" (1200mm) |
| CONVERTING THICKNESS (mm) | 0.010-0.10 | 0.010-0.10 | 0.010-0.10 |
| MOTOR (HP) | 2 | 3 | 3 |
| HEATER | 1.8 kw | 2.5 kw | 3.1 kw |
| POWER REQUIRED | 3.5 kw | 4.3 kw | 5.6 kw |
| DIMENSION L x W x H (CM) | 580 x 120 x 190 | 580 x 120 x 190 | 600 x 138 x 190 |
| MACHINE WEIGHT | 1200 kgs | 1300 kgs | 1400 kgs |
| PACKING L x W x H (CM) | 250 x 122 x 166 228 x 130 x 210 |
270 x 146 x 170 228 x 136 x 210 |
270 x 157 x 170 228 x 146 x 210 |
| GROSS WEIGHT | 1600 kgs | 1700 kgs | 1800 kgs |
| Model | 4060 | 4672 |
| BAG WIDTH (MAX.) | 38" (965 mm) | 44" (1110 mm) |
| BAG LENGTH | 60" (1520mm) | 72" (1800mm) |
| CONVERTING THICKNESS (mm) | 0.010-0.10 | 0.010-0.10 |
| MOTOR (HP) | 3 | 3 |
| HEATER | 4.5 kw | 5.2 kw |
