手提環保製袋機
產品型號：CW-800PFM-SV
產品分類：塑橡膠產業機械 / 塑膠機械 / 塑膠凸凹袋製造機
產品特色

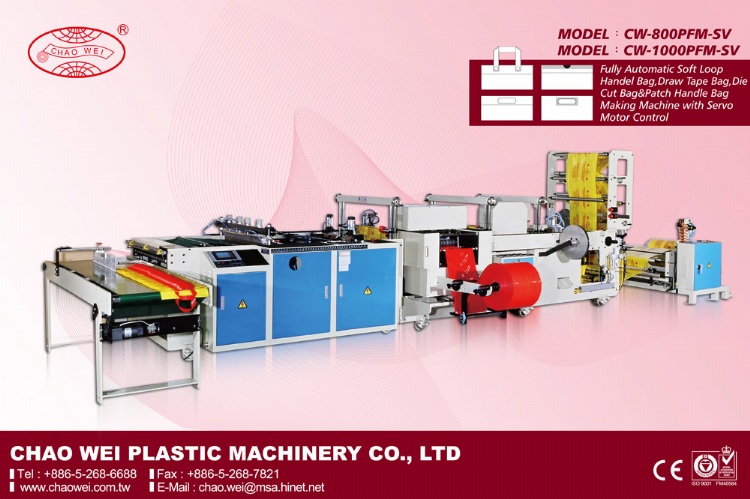

Fully Automatic Soft Loop Handle Bag, Draw Tape Bag, Die Cut Bag & Patch Handle Bag Making Machine With Servo Motor Control.
• Triangle Folding Equipment.
• May Choose mono-function specific machine.
• EPC control.
產品規格
| Model | CW-800PFM-SV | CW-1000PFM-SV |
| BAG WIDTH (MAX.) | 250 ~ 650 mm | 250 ~ 650 mm |
| BAG LENGTH | 250 ~ 650 mm | 250 ~ 850 mm |
| CONVERTING THICKNESS | 0.045 ~ 0.1 mm | 0.045 ~ 0.1 mm |
| TOP FOLDING | 70 ~ 75 mm | 70 ~ 75 mm |
| BOTTOM GUSSETING | 70 ~ 75 mm | 70 ~ 75 mm |
| SPEED (PCS / MIN) | 40 ~ 70 | 40 ~ 70 |
| MOTOR (HR) | 2 | 2 |
| HEATER | 1.8 kw x 1 0.8 kw x 2 0.4 kw x 6 |
1.8 kw x 1 0.8 kw x 2 0.4 kw x 6 |
| POWER REQUIRED | 8.5 kw | 10 kw |
| DIMENSION L x W x H (CM) | 8.0 x 2.3 x 2.0 | 8.0 x 2.5 x 2.0 |
| MACHINE WEIGHT | 3500 kgs | 4200 kgs |
| GROSS WEIGHT | 5000 kgs | 5700 kgs |
