製袋機
產品型號：CW-2000AB-SV
產品分類：塑橡膠產業機械 / 塑膠機械 / 塑膠凸凹袋製造機
產品特色

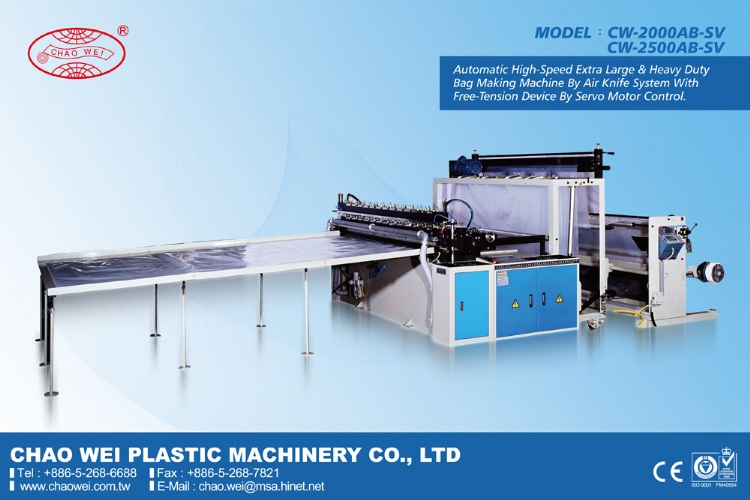

Automatic High-Speed Extra Large & Heavy Duty Bag Making Machine By Air Knife System With Free-Tension Device By Servo Motor Control.
• Cutting by single knife.
• Using up and down heater for free-tension knife. especially for heavy duty bag thickness up to 0.2mm.
• Bag’s length is up to 4,000mm.(Accept request for extra length as optional.)
產品規格
| Model | CW-2000AB-SV | CW-2500AB-SV |
| MAX BAG WIDTH(mm) | 1800 | 2300 |
| MAX BAG LENGTH(mm) | 4000 | 4000 |
| COWERTING THICKNESS(mm) | 0.06~0.2 | 0.06~0.2 |
| ACCURACY LENGTH(mm) | ±1 | ±1 |
| PCS / MIN | 8~30 | 8~30 |
| PCS / PACK | - | - |
| MOTOR / HP | 3 | 3 |
| HEATER(kw) | 11 | 11 |
| POWER REQUIRED(kw) | 15 | 16 |
| DIMENSION LXWXH(cm) | 670 x 270 x 190 | 680 x 300 x 190 |
| MACHINE WEIGHT(kgs) | 1800 | 2000 |
| PACKING LXWXH(cm) | 290 x 218 x 200 280 x 168 x 200 |
335 x 230 x 200 333 x 190 x 200 |
| GROSS WEIGHT(kgs) | 2000 | 2200 |
