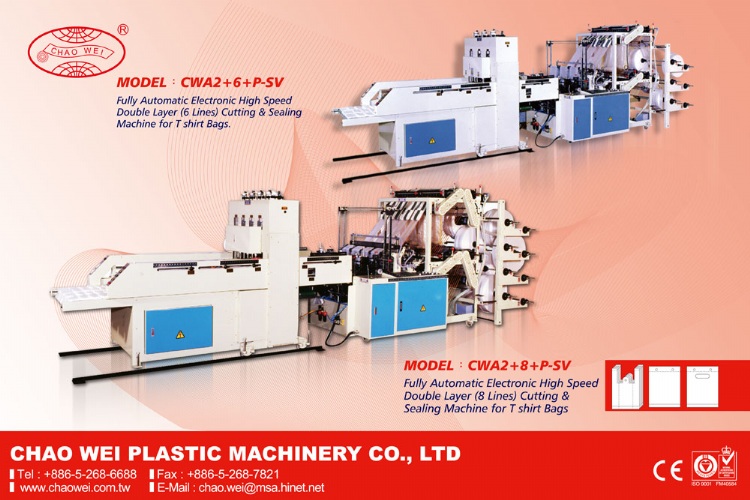

雙層T恤袋切割機
產品型號：CWA2+6+8+P-SV
產品分類：塑橡膠產業機械 / 塑膠機械 / 塑膠凸凹袋製造機
產品特色
• It is low power consumption, low noise level and no hot air pollution, with smooth and perfect punching.
• The machine will stop automatically. When:
Ⅰ.The bags become super-imposed or overlapped.
Ⅱ.Film finished.
Ⅲ. The temperature drop 4-8 degrees.
Ⅳ.Air pressure not enough.
• High speed 6 lines (up & down) capacity: 100pcs X 6= 600pcs/min.
產品規格
| Model | CWA2+6+P-800 32" |
CWA2+6+P-1000 40" |
| BAG WIDTH (MAX.) | 9" x 6 230 mm x 6 |
12" x 6 300 mm x 6 |
| BAG LENGTH | 250 ~ 700 mm | 250 ~ 700 mm |
| CONVERTING THICKNESS | 0.008 ~ 0.04 mm | 0.008 ~ 0.04 mm |
| ACCURACY LENGTH | ± 1 mm | ± 1 mm |
| SPEED PCS/MIN | 30 ~ 120 x 6 | 30 ~ 120 x 6 |
| MOTOR (HP) | 2 | 2 |
| HEATER | 4.2 kw | 4.6 kw |
| POWER REQUIRED | 8.7 kw | 9.2 kw |
| DIMENSION L x W x H (CM) | 630 x 155 x 155 | 630 x 175 x 155 |
| MACHINE WEIGHT | 2700 kgs | 2800 kgs |
| PACKING L x W x H (CM) | 280 x 187 x 175 300 x 157 x 185 |
280 x 197 x 175 300 x 175 x 185 |
| GROSS WEIGHT | 3100 kgs | 3200 kgs |
