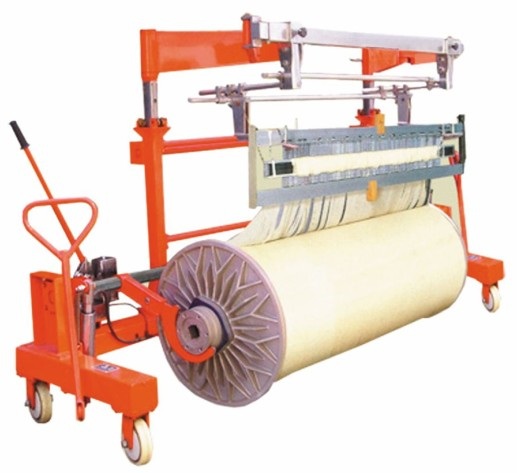

Single Warp Beam With Harness Mounting Device
產品型號:ST-HBT-03
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他紡織機械
產品特色
1.Single warp beam and harness mounting device carrying trolley suitable for 1800~ 4000mm wide looms.
2.Capacity of carrying 1000kgs and suitable for 800mm-1000mm beam flange dia.
3.Warp beam and harness mounting device lifting movement by hydraulic hand pump with minimum manual efforts.
4.Both side handle bars for turning, pushing and pulling the trolley for transport.
5.Warp barrel resting on two solid arms provided on both sides.
產品規格
Carrying Capacity: 1000kgs
Beam Flange Diameter: 800-1000mm
Beam Barrel Diameter: 100-400mm:
Width of Trolley: 1000mm
Length of Trolley: upto 4000mm
Trolley Wheels: 4nos.
Hydraulic Cylinders: three
Hydraulic Unit: one
