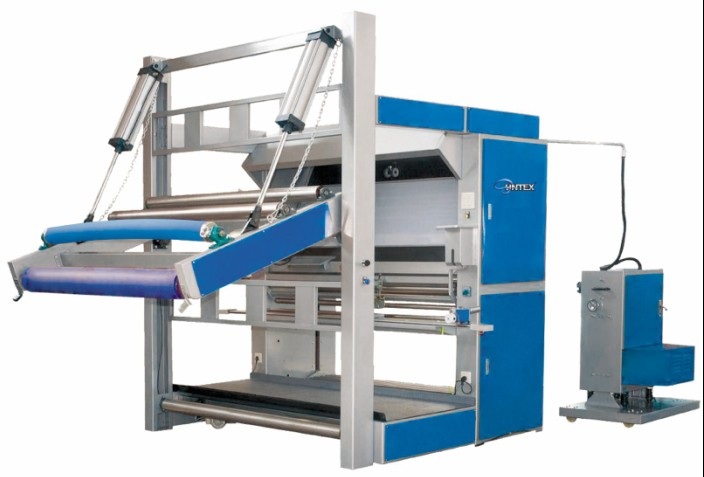

Batching Machine
產品型號：ST-BM-02
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 染整設備
產品特色
1) . Direct Centre Drive System & Surface Contact Peripheral Drive Roller with Pneumatically Controlled Arm " A" frame fabric is unwound from non-contact centre drive system and wound by peripheral drive roller with pneumatically controlled arm, especially ideal for checking delicate or heavy duty fabrics.
2) . Fabric Input, Output Synchronized- for Tensionless Roll Up Speed is controlled by an adjustable light accumulation rollers for automatic fabric synchronisation.
3) . Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen Fabric can be checked under the aid of different viewing and lighting options.
4) . Accurate Fabric Length Measuring Fabric roll length can be taken by industrial standard measuring systems with digital readouts to give consistent fabric roll assessments.
5) . Stable Running & Easy Operation The whole machine is controlled by PLC and the machine can be easily operated with optional Touch Screen.
6) . Simple Fabric Control With Bow/ Banana Roller to eliminate fabric creasing and roll distortions.
7) . Stretch Fabric Control - with Scroll Roller System and Optional De-curling System Fabric control at all times to generate consistent roll width and edge output.
8) . Versatile Fabric Input and Output Options - Synchronize with Other Production Operations Optional systems are available for different fabric input and output presentations, continuous fabric input and plait input or output.
9) . Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with software for accurate fabric roll analysis and printout.
10) . Sampling - Optional Fabric sample can be taken by automatic linear cutter and the rest fabric can be stitched by automatic sewing machine for on going checking.
