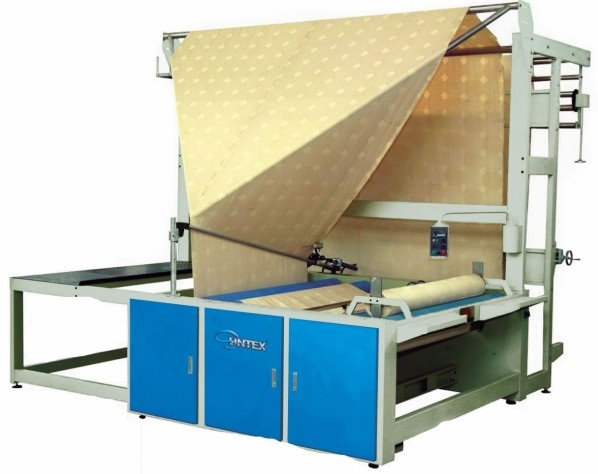

Double Folding&Rolling Machine
產品型號:ST-DFRM
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 自動對邊摺布機
產品特色
1) . Doubling, rolling, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or batchers and with outlet on rolls.
2) . For proper folding, special systems for thin and sensitive fabrics.
3) . Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.
4) . Reliable measuring with electronic calibrated counter meter system.
5) . Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of the roll.
6) . Automatic printing on selvedge, checking table, printing of measuring - Optional
7) . Automatic Linear Cut ( Fabric Roll End Cutter) - Optional
產品規格
Speed: 0-80m/min
Fabric Width: 1.8-4.0 meters
Standard Roll Diameter: 500mm
Dimensions(LXWXH): 3500mmX3500mmX3030mm
Weight: 1600kgs
Electric Specs: 3phase-380v; 50HZ (can be adjusted to suit for different countries)
Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.
