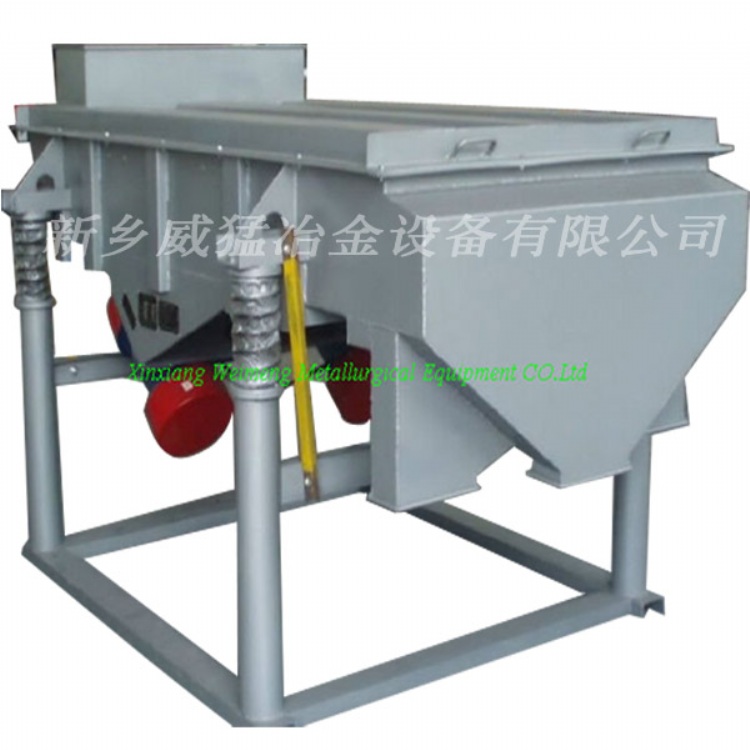

Linear vibrating sieve machine, vibration screen
產品型號：WZS
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
Introduction:
WZS series linear vibrating sieve is widely used to sieve the fine grain and powder materials in the industries such as food, plastics, grinding material, building material, chemical, pharmaceutical, metallurgy, resign powder, abrasives, ceramic material, etc.
Vibratory screens can be provided with dust proof cover as required. WZS Series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.
Structure introduction
This equipment is mainly composed of screen box, screen frame,vibration motor, supporting device.
1) Screen box: mainly welded by Q235 plain carbon steel
2) Screen frame: screen frame can be made by plain carbon steel or stainless steel
3) Vibration motor: two sets of horizontal vibration motor installed in the equipment as vibration source, can produce exciting force to adapt to different requirements by adjusting he motor eccentric block at both ends
4) Supporting device: including supporting springs and supporting frame which welded by iron channel. Inclination of the screen can be modulated by changing the height of support legs.
If you have special requirements, please don't hesitate to contact us, we would service you well.
產品規格
The angle of sieve: 10 - 15 degree
Mesh size: no more than 120 mm
Largest handling capacity: 600 t/h
Double amplitudes: 7 - 9 mm
Layers: 1 - 3
Voltage: 380 V
Warranty: 1 year
function classification: remove impurity
Material: Q235A or SUS304
