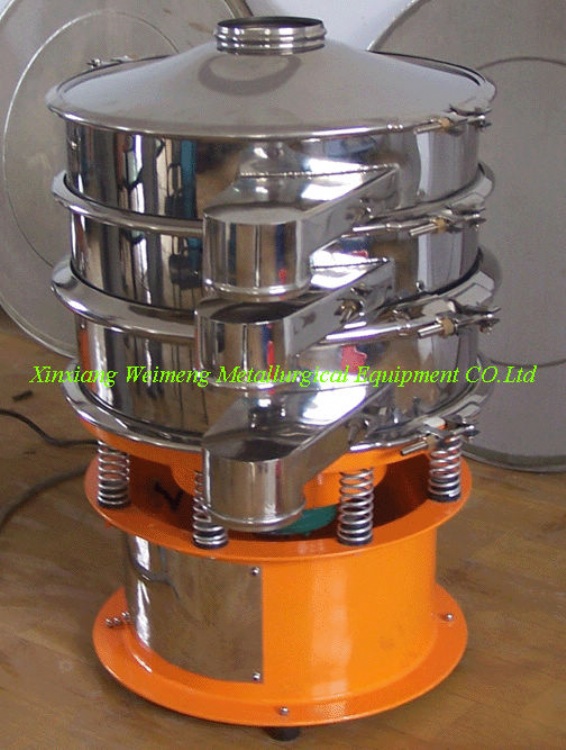

Rotary vibrating screen for waste water
產品型號：WXZ
產品分類：自動化設備/產業機械 / 化工機械 / 水處理設備
產品特色
1 Work principle
Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
2Applicable Industries
Chemical industry: resin, pigment,cosmetic, coatings, chinese medicine powder
Food industry: sugar powder, starch, salt, rice noodle, milk powder,egg powder,sauce,syrup
Metallurgy, Mining industry: aluminum poweder, copper powder, ore alloy powder, welding rodpowder,
Medical industry: all kinds of medicine
Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
3 Application Range:
1.Size classification: separation of particles into groups of comparable size from the materials.
2.Gravity filtering: removal of solids from liquids and slurries.
3.Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4.Screening: separation of a few oversize particles from a quantity of materials.
5.Liquid cleaning: cleaning of wastewater or remobving the solids from recirculating liquid.
You can give us yourrequirments to get a suitable machine, like the below
1.material (name)that you want to process,with the density,water content(%).
2.the necessary process quantity (per hour)
3.material contact part such us SS304,SS316L and Q235 are all available.
產品規格
1. Powder and slurry can be screened
2. Dust proof enclosed system
3. Superior accurate separation efficiency
