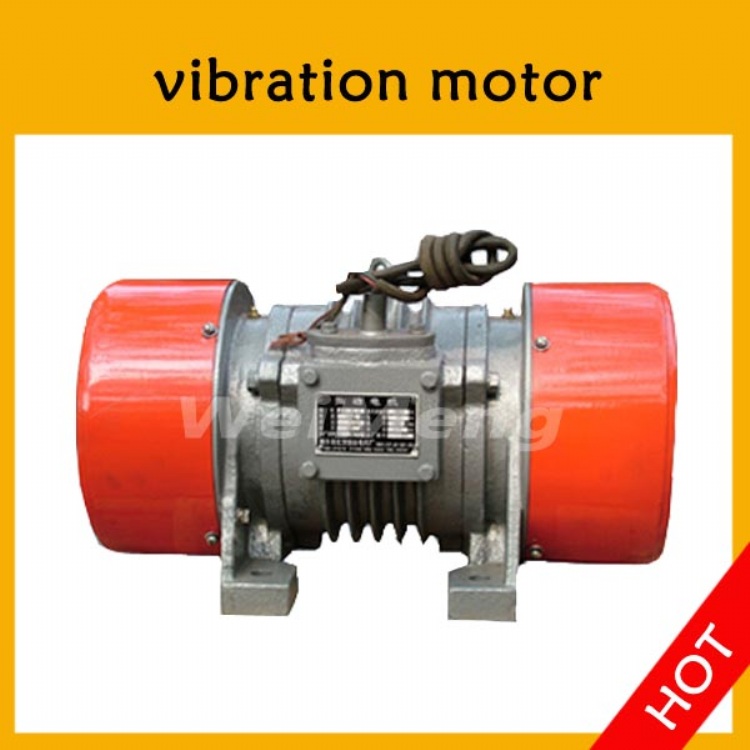

Vibration motor for mining industry
產品型號：YZO
產品特色
Application
When the eccentric block rotates, it can generate centrifugal force, then the motor have the exciting force.
YZO vibration motor is a common vibrating source for various vibrating machines, such as vibrating feeder, vibrating screen, oscillating conveyor, vibratory shakeout machine, vibrating drier,shaking table and so on. It is widely used in electric power, building materials, coal, mining, metallurgy, chemical industry, light industry, foundry and other industries.
Working condition of vibrating motor
Altitude: less than 1000m
Frequency:50HZ
Connection method:Y
Insulation grade:B
Circumstance temperature: -15--+40 centigrade degree
Quality guarantee
1. The enclosure of motor is cast steel.
2. When machine processing, we use CNC lathe to guarantee high precision.
3. We use press to assemble the bearing.
4. We have 48 hours test run before delivery, to check the quality of eccentric block.
5. SKF and NSK bearings are available.
產品規格
1. Poles: 2,4,6
2. Easy to adjust exciting force
3. Stepless speed regulation
4. Full enclosed structure
AC Voltage: 380 /415 /660 V
Place of Origin: Henan, China (Mainland)
Efficiency: IE 4
Insulation class: B
IP 54
Voltage: 380V,415V, 660V
Feature: asynchronous motor
Phase: three phase
Frequency: 50HZ
Max exciting force: 200 KN
